74LVTH322373

`Input and output interface capability to systems at 5V V <sub>CC</sub>
`Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH322373), also available without bushold feature (74LVT322373)
`Live insertion/extraction permitted
`Power Up/Down high impedance provides glitch-free bus loading
`Outputs include equivalent series resistance of 25 to make external termination resistors unnecessary and reduce overshoot and undershoot
`ESD performance: Human-body model > 2000V Machine model > 200V Charged-device model > 1000V
`Packaged in plastic Fine-Pitch Ball Grid Array (FBGA)

Note 3: Absolute Maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum rated conditions is not implied. Note 4: I_O Absolute Maximum Rating must be observed.

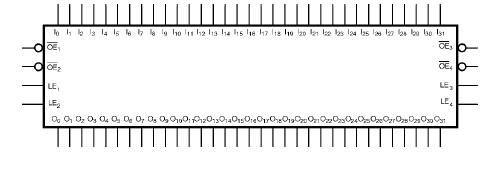

The 74LVTH322373 contain thirty-two noninverting latches with 3-STATE outputs and are intended for bus oriented applications. The device is byte controlled. The flip-flops appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in a high impedance state.

The 74LVTH322373 data inputs include bushold, eliminatingthe need for external pull-up resistors to hold unused  inputs.

These latches are designed for low voltage (3.3V) V _CC applications, but with the capability to provide a TTL interface to a 5V environment. The LVT322373 and 74LVTH322373 are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation.
