74LVTH32244

·Input and output interface capability to systems at 5V V _CC
·Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH32244), also available without bushold feature (74LVT32244).
·Live insertion/extraction permitted
·Power Up/Down high impedance provides glitch-free bus loading
·Outputs source/sink −32 mA/+64 mA
·ESD performance: Human-body model > 2000V Machine model > 200V Charged-device model > 1000V
·Packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)

Note 2: Absolute Maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum rated conditions is not implied. Note 3: I_O Absolute Maximum Rating must be observed.

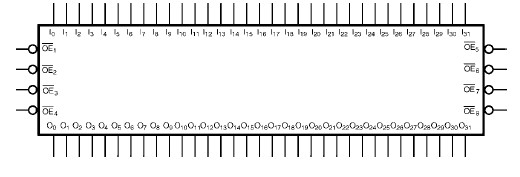

The 74LVTH32244 contain thirty-two noninverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or  bus oriented transmitter/receiver. The device is nibble controlled. Individual 3-STATE control inputs can be shorted together for 8-bit, 16-bit, or 32-bit operation.

The 74LVTH32244 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.

These buffers and line drivers are designed for low-voltage (3.3V) V_CC applications, but with the capability to provide a TTL interface to a 5V environment. The 74LVTH32244  are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation
