Symbol |
Parameter |
Value |
Unit |
VCC |
Supply Voltage |
-0.5 to +7.0 |
V |
VI |
DC Input Voltage |
-0.5 to +7.0 |
V |
VO |
DC output Voltage |
-0.5 to VCC + 0.5 |
V |
VIK |
DC Input Diode Current |
- 20 |
mA |
IOK |
DC Output Diode Current |
± 20 |
mA |
IO |
DC Output Current |
± 25 |
mA |
ICC |
DC VCC or Ground Current |
± 50 |
mA |
ID |
Power Dissipation |
180 |
mW |
Tstg |
Storage Temperature |
-65 to +150 |
°C |
TL |
Lead Temperature (10 sec) |
300 |
°C |
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions not implied.

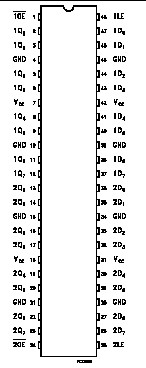

The 74LVX16374 is a low voltage CMOS 16 BIT D-TYPE FLIP-FLOP with 3 STATE OUTPUTS NON INVERTING fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power, battery operated and low noise 3.3V applications.
These 16 bit D-TYPE flip-flop of the 74LVX16374 is controlled by two clock inputs (CK) and two output enable inputs (nOE). The device can be used as two 8-bit flip-flops or one 16-bit flip-flop.On the positive transition of the clock, the Q outputs will be set to the logic state that were setup at the D inputs. While the (OE) input is low, the outputs will be in a normal logic state (high or low logic level); while OE is high, the outputs will be in a high impedance state.The output control does not affect the internal operation of flip-flops; that is, the old data can be retained or the new data can be entered even while the outputs are off.Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage.This device can be used to interface 5V to 3V. All inputs and outputs of the 74LVX16374 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
