Features: HIGH SPEED: fMAX = 150 MHz (TYP.) at VCC = 3.3V 5V TOLERANT INPUTS POWER-DOWN PROTECTION ON INPUTS INPUT VOLTAGE LEVEL: VIL = 0.8V, VIH = 2V at VCC =3V LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25°C LOW NOISE: VOLP = 0.3V (TYP.) at VCC =3.3V SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL ...
74LVX273: Features: HIGH SPEED: fMAX = 150 MHz (TYP.) at VCC = 3.3V 5V TOLERANT INPUTS POWER-DOWN PROTECTION ON INPUTS INPUT VOLTAGE LEVEL: VIL = 0.8V, VIH = 2V at VCC =3V LOW POWER DISSIPATION: ICC = 4 A (MA...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VCC | Supply Voltage | -0.5 to +7.0 | V |
VI | DC Input Voltage | -0.5 to +7.0 | V |
VO | DC Output Voltage | -0.5 to VCC + 0.5 | V |
IIK | DC Input Diode Current | -20 | mA |
IOK | DC Output Diode Current | ± 20 | mA |
IO | DC Output Current | ± 25 | mA |
ICC or IGND | DC VCC or Ground Current | ± 50 | mA |
Tstg | Storage Temperature | -65 to +150 | °C |
TL | Lead Temperature (10 sec) | 300 | °C |

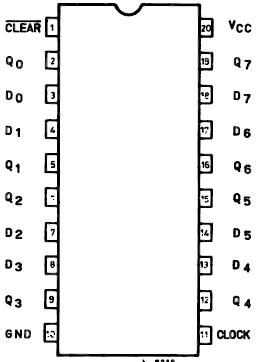

The 74LVX273 is a low voltage CMOS OCTAL D-TYPE FLIP-FLOP WITH CLEAR fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power, battery operated and low noise 3.3V applications.
Information signals applied to D inputs are transferred to the Q outputs on the positive going edge of the clock pulse. When the CLEAR input is held low, the Q outputs are held low independently of the other inputs. Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V. It combines high speed performance with the true CMOS low power consumption. All inputs and outputs are equipped with protection circuits of the 74LVX273 against static discharge, giving them 2KV ESD immunity and transient excess voltage.
