Features:

· 1.2V to 3.6V VCC supply operation
· 3.6V tolerant inputs and outputs
· tPDCLK to On)
   3.4 ns max for 3.0V to 3.6V VCC
   4.8 ns max for 2.3V to 2.7V VCC
   9.6 ns max for 1.65V to 1.95V VCC

· Power-off high impedance inputs and outputs
· Static Drive (IOH/IOL)
   ±12 mA @ 3.0V VCC
   ±8 mA @ 2.3V VCC
   ±3 mA @ 1.65V VCC

· Uses patented Quiet Seriesä noise/EMI reduction circuitry
· Latchup performance exceeds JEDEC 78 conditions
· ESD performance:
   Human body model > 2000V
   Machine model > 200V



Pinout

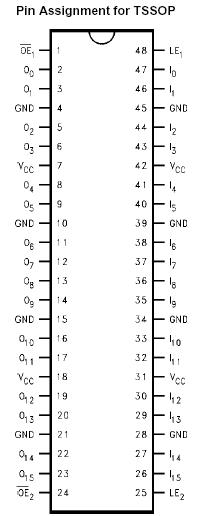

  Connection Diagram


Specifications

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . -0.5V to +4.6V
DC Input Voltage (VI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Output Voltage (VO)
Outputs 3-STATED . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Outputs Active (Note 3) . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . -0.5V to VCC + 0.5V
VCC = 0V . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.5V to +4.6V
DC Input Diode Current (IIK)
VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -50 mA
DC Output Diode Current (IOK)
VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .-50 mA
VO > VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +50 mA
DC Output Source/Sink Current (IOL/IOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
DC VCC or Ground Current per . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . . . .±100 mA
Supply Pin (ICC or Ground)
Storage Temperature Range (Tstg) . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C



Description

The 74VCX162374 contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The VCX162374 is also designed with 26W series resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers and bus transceivers/transmitters.

The 74VCX162374 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V.

The 74VCX162374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
