74VCX16240

Features: · 1.2V to 3.6V VCC supply operation· 3.6V tolerant inputs and outputs· tPD 2.5 ns max for 3.0V to 3.6V VCC 3.0 ns max for 2.3V to 2.7V VCC 6.0 ns max for 1.65V to 1.95V VCC· Power-off high impedance inputs and outputs· Static Drive (IOH/IOL) ±24 mA @ 3.0V VCC ±18 mA @ 2.3V VCC ±6 mA @ 1....

product image

74VCX16240 Picture
See larger image
SeekIC No. : 004251794 Detail

74VCX16240: Features: · 1.2V to 3.6V VCC supply operation· 3.6V tolerant inputs and outputs· tPD 2.5 ns max for 3.0V to 3.6V VCC 3.0 ns max for 2.3V to 2.7V VCC 6.0 ns max for 1.65V to 1.95V VCC· Power-off high...

74VCX16240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VCX16240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1.2V to 3.6V VCC supply operation
· 3.6V tolerant inputs and outputs
· tPD
  2.5 ns max for 3.0V to 3.6V VCC
  3.0 ns max for 2.3V to 2.7V VCC
  6.0 ns max for 1.65V to 1.95V VCC
· Power-off high impedance inputs and outputs
· Static Drive (IOH/IOL)
  ±24 mA @ 3.0V VCC
  ±18 mA @ 2.3V VCC
  ±6 mA @ 1.65V VCC
· Uses patented Quiet Seriesä noise/EMI reduction circuitry
· Latch-up performance exceeds 300 mA
· ESD performance:
  Human body model > 2000V
  Machine model > 200V



Pinout

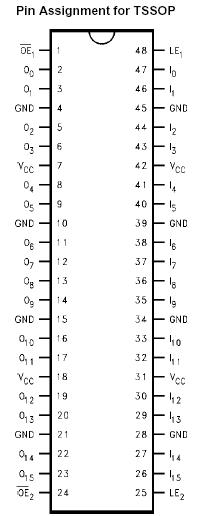

Connection Diagram


Specifications

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . -0.5V to +4.6V
DC Input Voltage (VI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . -0.5V to +4.6V
Output Voltage (VO)
Outputs 3-STATED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5V to +4.6V
Outputs Active (Note 3) . . . . . . . .. . . . . . . . . . . . . .   . . . . .. . . . . . -0.5V to VCC + 0.5V
DC Input Diode Current (IIK)
VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . . . . . . . . . -50 mA
DC Output Diode Current (IOK)
VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . . . .. . . . . . . . .-50 mA
VO > VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . +50 mA
DC Output Source/Sink Current (IOL/IOL) . . . . . . . . . . . . . . . . . . . . .. . .  . . . . . ±50 mA
DC VCC or Ground Current per . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .  . . .  . . . .±100 mA
Supply Pin (ICC or Ground)
Storage Temperature Range (Tstg) . . . . . . . . . . . . . . . . . . . . . . . . .. . .-65°C to +150°C


Description

The 74VCX16240 contains sixteen inverting buffers with 3- STATE outputs to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver.The device is nibble (4-bit) controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.

The 74VCX16240 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O capability up to 3.6V.

The 74VCX16240 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
