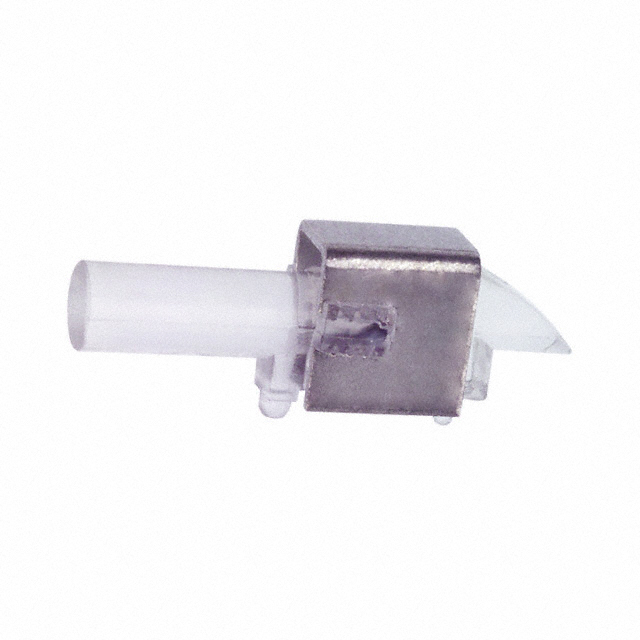

7520A10-TRLF

Color: Clear
Configuration: Single
Type: Rigid
Mounting Type: Board Mount, Press Fit
Lens Style/Size: Round with Flat Top, 2.8mm
Manufacturer: Chicago Miniature Lighting, LLC
Series: 7520


Pinout




Specifications

Part Number: 7520A10-TRLF
Serial Number: 7520
LED type: Surface Mount
Type: All
Mounting: Surface Mount
Works with: CMD67-21 / CMD67-22 Series
Housing ul rating: UL-HB
RoHS Status: Yes


Description

Bright•Pipes™ Optical Lightpipes of the 7520A10-TRLF produce bright, even indication based on optical ray tracing. They conveniently and economically conduct light from SMT LEDs through angles and distances to a viewable front lense surface in order to provide an attractive, bright and even indication of equipment of function status of the 7520A10-TRLF with a minimal attenuation of light output through the optical fibers that join the base, at the LED light source, to the lens front.


Parameters:

Technical/Catalog Information	7520A10-TRLF
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Clear
Mounting Type	PCB, Right Angle
Lens Style/Size	Round with Flat Top, 2.8mm
Configuration	Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7520A10 TRLF 7520A10TRLF L70591DKR ND L70591DKRND L70591DKR
