7545A

Features:

• RAD-PAK^® patented shielding against natural space radiation
• Total dose hardness:
- > 100 krad (Si), depending upon space mission
• Excellent single event effects
- SEL_TH: > 120 MeV/mg/cm²
- SEU_TH: > 120 MeV/mg/cm² using all 1's
• Package:
- 20 pin R_AD-P_AK® Flat Pack
- 20 pin R_AD-P_AK® DIP
• Low gain temperature coefficient:
- 5 ppm/°C typ.
• Fast interface timing
• Single +5 V to +15 V supply

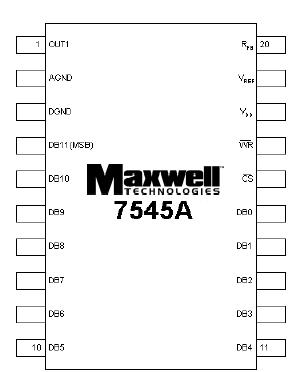

Pinout




Specifications

PARAMETER	SYMBOL	MIN	MAX	UNIT
VDD to DGND	--	-0.3	17	V
Digital Input Voltage to DGND	--	-0.3	VDD + 0.3	V
VRFB, VREF to DGND	--	--	25	V
VPIN1 to DGND	--	-0.3	VDD + 0.3	V
AGND to DGND	--	-0.3	VDD + 0.3	V
Power Dissipation to 75 °C	PD	--	450	mW
Thermal Impedance - Flat Package	JC	--	6.08	°C/W
Thermal Impedance - DIP Package	JC	--	6.04	°C/W
Operating Temperature	--	-55	125	°C
Storage Temperature Range	TS	-65	150	°C

Description

   Maxwell Technologies' 7545A is a 12-bit CMOS-buffered multiplying DAC with internal data latches, which features a greater than 100 krad (Si) total dose tolerance, depending upon space mission. The 7545A features a WR pulse width of 100 ns which allows interfacing to a much wider range of fast 8-bit and 16-bit microprocessors. It is loaded by a single 12-bit wide word under the control of the CS and WR inputs; tying these control inputs low makes the input latches transparent allowing unbuffered operation of the DAC. The 7545A is particularly suitable for single supply operations and applications with wide temperature variations.

Maxwell Technologies' patented R_AD-P_AK^® packaging technology incorporates radiation shielding in the microcircuit package.It eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or space mission. In a GEO orbit, R_AD-P_AK provides greater than 100 krad (Si) radiation dose tolerance. This 7545A is available with screening up to Class S.
