7574NW

Features: • 74 segment outputs• Noise reduction circuits are built into the output drivers.• Serial data input supports CCB* format communications with the system controller.• Switching between digital and analog dimmers under serial data control• High generality sinc...

product image

7574NW Picture
See larger image
SeekIC No. : 004252119 Detail

7574NW: Features: • 74 segment outputs• Noise reduction circuits are built into the output drivers.• Serial data input supports CCB* format communications with the system controller.•...

7574NW Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
7574NW
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 74 segment outputs
• Noise reduction circuits are built into the output drivers.
• Serial data input supports CCB* format communications with the system controller.
• Switching between digital and analog dimmers under serial data control
• High generality since display data is displayed without the intervention of a decoder
• All segments can be turned off with the BLK pin


Pinout

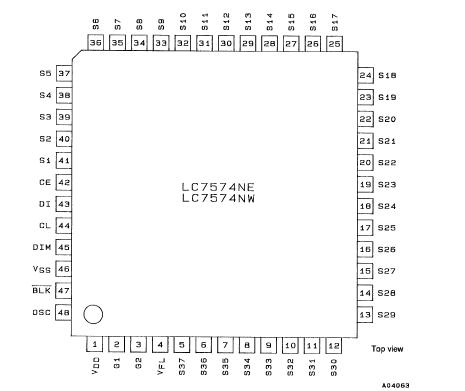

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max

VDD

0.3 to +6.5
V
VFL max
VFL
0.3 to +21.0
V
Input voltage
VIN1
DI, CL, CE, BLK, DIM
0.3 to +6.5
V
VIN2
OSC
0.3 to VDD + 0.3
V
Output voltage
VOUT1
S1 to S19, G1, G2
0.3 to VFL + 0.3
V
VOUT2
OSC
0.3 to VDD + 0.3
V
Output current
IOUT1
S1 to S37
5
mA
IOUT2
G1, G2
67
mA
Allowable power dissipation
Pd max
Ta = 85°C (LC7574NE)
250
mW
Ta = 85°C (LC7574NW)
150
mW
Operating temperature
Topr
40 to +85
°C
Storage temperature
Tstg
50 to +125
°C



Description

The LC7574NE and LC7574NW are 1/2 duty VFD drivers that can be used for electronic tuning frequency display and other applications under the control of a controller. These products can directly drive VFDs with up to 74 segments.
