75833JE

Features: • Supports both 1/3 duty 1/2 bias and 1/3 duty 1/3 bias LCD drive under serial data control. LC75833E, LC75833W: up to 105 segments LC75833JE: up to 93 segments (without the S12, S23, S24, S35 segment output pins from the LC75833E, LC75833W)• Serial data input supports CCB fo...

product image

75833JE Picture
See larger image
SeekIC No. : 004252123 Detail

75833JE: Features: • Supports both 1/3 duty 1/2 bias and 1/3 duty 1/3 bias LCD drive under serial data control. LC75833E, LC75833W: up to 105 segments LC75833JE: up to 93 segments (without the S12, S23...

75833JE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
75833JE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports both 1/3 duty 1/2 bias and 1/3 duty 1/3 bias LCD drive under serial data control. LC75833E, LC75833W: up to 105 segments LC75833JE: up to 93 segments
   (without the S12, S23, S24, S35 segment output pins from the LC75833E, LC75833W)
• Serial data input supports CCB format communication with the system controller.
• Serial data control of the power-saving mode based backup function and all the segments forced off function
• Serial data control of switching between the segment output port and the general-purpose output port functions
• High generality, since display data is displayed directly without decoder intervention.
• Independent VLCD for the LCD driver block (VLCD can be set to any voltage in the range 2.7 to 6.0 volts, regardless of the logic block power-supply voltage.)
• The INH pin can force the display to the off state.
• RC oscillator circuit


Pinout

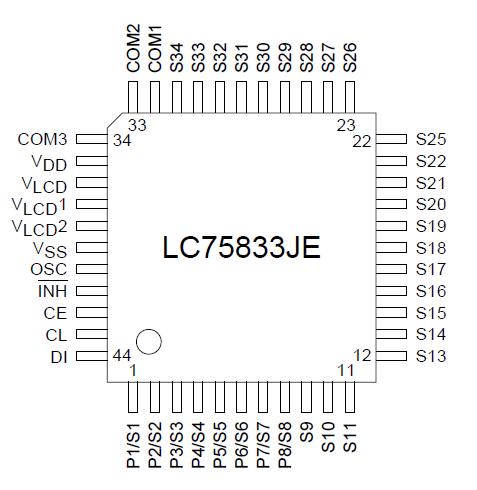

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage

VDD max
VDD
0.3 to +7.0
V
VLCD max
VLCD
0.3 to +7.0
V
Input voltage
VIN1
CE, CL, DI, INH
0.3 to +7.0
V
VIN2
OSC
0.3 to VDD + 0.3
V
VIN3
VLCD1, VLCD2
0.3 to VLCD + 0.3
V
Output voltage
VOUT1
OSC
0.3 to VDD + 0.3
V
VOUT2
S1 to S35, COM1 to COM3, P1 to P8
0.3 to VLCD + 0.3
V
Output current
VOUT1
S1 to S35
300
A
VOUT2
COM1 to COM3
3
mA
VOUT3
P1 to P8
5
mA
Allowable power dissipation
Pd max
Ta = 85°C
150
mW
Operating temperature
Topr
40 to +85
°C
Storage temperature
Tstg
55 to +125
°C
Note: The LC75833JE does not have the S12, S23, S24, S35 output pins.


Description

The LC75833E, LC75833W, and LC75833JE are 1/3-duty general-purpose LCD display drivers that can be used for frequency display in electronic tuners under the control of a microcontroller. The LC75833E and LC75833W can drive an LCD with up to 105 segments directly, the LC75833JE can drive an LCD with up to 93 segments directly. The LC75833E and LC75833W and LC75833JE can also control up to 8 general-purpose output ports. Since the LC75833E, LC75833W, and LC75833JE use separate power supply systems for the LCD drive block and the logic block, the LCD driver block power-supply voltage can be set to any voltage in the range 2.7 to 6.0 volts, regardless of the logic block power-supply voltage.
