78816MC

Features: • Two's complement data format• Two D/A converter channels built in (in-phase outputs)• Maximum conversion frequency of 400 kHz (support for 8 times oversampling)• Built-in output op amps• No deglitching circuit required• Si gate CMOS process (low powe...

product image

78816MC Picture
See larger image
SeekIC No. : 004252689 Detail

78816MC: Features: • Two's complement data format• Two D/A converter channels built in (in-phase outputs)• Maximum conversion frequency of 400 kHz (support for 8 times oversampling)• ...

78816MC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
78816MC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two's complement data format
• Two D/A converter channels built in (in-phase outputs)
• Maximum conversion frequency of 400 kHz (support for 8 times oversampling)
• Built-in output op amps
• No deglitching circuit required
• Si gate CMOS process (low power consumption)
• 5 V single-voltage power supply
• Low voltage (3.5 V) operation possible


Pinout

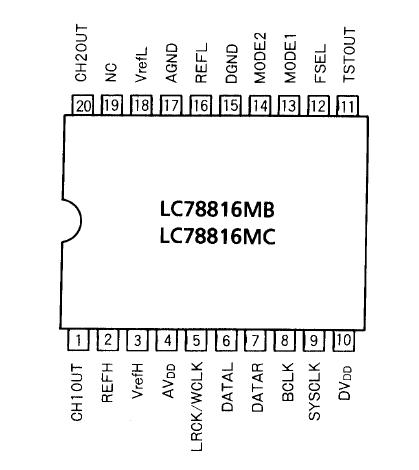

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit

Maximum power supply voltage

VDD max

0.3 to +7.0
V
Input voltage
VIN
0.3 to VDD + 0.3
V
Output voltage
VOUT
0.3 to VDD + 0.3
V
Operating temperature
Topr
30 to +75
°C
Storage temperature
Tstg
40 to +125
°C



Description

The 78816MC are 16-bit CMOS D/A converters for use in digital audio products. They employ a dynamic level shift conversion technique that combines a resistor string (for the upper 9 bits), PWM (for the middle 3 bits), and level shifting (for the lower 4 bits).
