80296SA

`50 MHz Operation†
`6 Mbytes of Linear Address Space
`512 Bytes of Register RAM
`2 Kbytes of Code/Data RAM
`Register-register Architecture
`Footprint and Functionally Compatible Upgrade for the 8XC196NP and 80C196NU
`Optional Phase-locked Loop (PLL) Circuitry with 2x or 4x Clock Multiplier
`32 I/O Port Pins
`19 Interrupt Sources, 14 with Programmable Priorities
`4 External Interrupt Pins and NMI Pin
`2 Flexible 16-bit Timer/Counters with Quadrature Counting Capability
`3 Pulse-width Modulator (PWM) Outputs with High Drive Capability
`Full-duplex Serial Port with Dedicated Baud-rate Generator
`Chip-select Unit -6 Chip-select Pins -Dynamic Demultiplexed/Multiplexed Address/Data Bus for Each Chip Select -Programmable Wait States (015) for Each Chip Select -Programmable Bus Width (8- or 16-bit) for Each Chip Select -Programmable Address Range for Each Chip Select
`Event Processor Array (EPA) with 4 High-speed Capture/Compare Channels
`Multiply and Accumulate Executes in 80 ns Using the 40-bit Hardware Accumulator
`880 ns 32/16 Unsigned Division

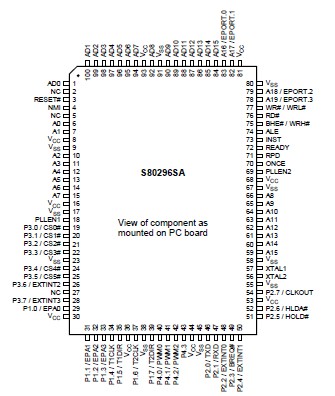

`100-pin QFP Package
`Complete System Development Support
`High-speed CHMOS Technology
† 40 MHz standard; 50 MHz is Speed Premium

Storage Temperature ................................ 60°C to +150°C
Supply Voltage with Respect to V_SS............... 0.5 V to +7.0 V
Power Dissipation ........................................................... 1.5 W
*WARNING: Stressing the device beyond the "Absolute Maximum Ratings" may cause permanent damage. These are stress ratings only. Operation beyond the "Operating Conditions" is not recommended and extended exposure beyond the "Operating Conditions" may affect device reliability.

The 80296SA is a member of Intel's 16-bit MCS^® 96 microcontroller family. The 80296SA features 6 Mbytes of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between  ultiplexed and demultiplexed operation. The device has hardware and instructions to support various digital signal processing algorithms.
