80960SA

Features: High-Performance Embedded Architecture - 20 MIPS* Burst Execution at 20 MHz - 7.5 MIPS Sustained Execution at 20 MHz 512-Byte On-Chip Instruction Cache - Direct Mapped - Parallel Load/Decode for Uncached Instructions Multiple Register Sets - Sixteen Global 32-Bit Registers - Sixteen Loca...

product image

80960SA Picture
See larger image
SeekIC No. : 004253658 Detail

80960SA: Features: High-Performance Embedded Architecture - 20 MIPS* Burst Execution at 20 MHz - 7.5 MIPS Sustained Execution at 20 MHz 512-Byte On-Chip Instruction Cache - Direct Mapped - Parallel Load/Deco...

80960SA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
80960SA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High-Performance Embedded Architecture
   - 20 MIPS* Burst Execution at 20 MHz
   - 7.5 MIPS Sustained Execution  at 20 MHz
512-Byte On-Chip Instruction Cache
   - Direct Mapped
   - Parallel Load/Decode for Uncached Instructions
Multiple Register Sets
   - Sixteen Global 32-Bit Registers
   - Sixteen Local 32-Bit Registers
   - Four Local Register Sets Stored On-Chip
   - Register Scoreboarding
 Pin Compatible with 80960SB
Built-in Interrupt Controller
   - 4 Direct Interrupt Pins
   - 31 Priority Levels, 256 Vectors
Easy to Use, High Bandwidth 16-Bit Bus
   - 32 Mbytes/s Burst
   - Up to 16 Bytes Transferred per Burst
32-Bit Address Space, 4 Gigabytes 80-Lead Quad Flat Pack (EIAJ QFP)
84-Lead Plastic Leaded Chip Carrier (PLCC) Software Compatible with 80960KA/KB/CA/CF Processors

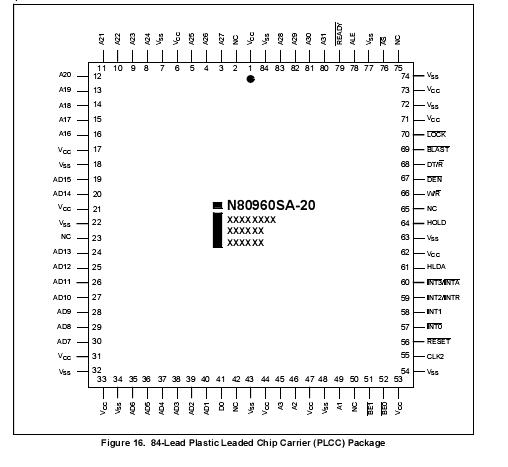

Pinout

Connection Diagram Connection Diagram


Specifications

Operating Temperature (PLCC) ...........   0 to +85 Case
Operating Temperature (QFP)............  0 to +100 Case
Storage Temperature .............................. 65 to +150
Voltage on Any Pin (PLCC)................. 0.5V to VCC +0.5V
Voltage on Any Pin (QFP)............... 0.25V to VCC +0.25V
Power Dissipation....................................... 1.9W (20 MHz)
NOTICE: This is a production data sheet. The specifications are subject to change without notice.
*WARNING: Stressing the device beyond the"Absolute Maximum Ratings" may cause permanent damage. These are stress ratings only.Operation beyond the "Operating Conditions" is not recommended and extended exposure beyond the"Operating Conditions" may affect device reliability.
