80C188EB

Features: Integrated Feature Set -Low-Power Static CPU Core -Two Independent UARTs each withan Integral Baud Rate Generator -Two 8-Bit Multiplexed IO - PortsProgrammable Interrupt Controller -Three Programmable 16-Bit TimerCounters -Clock Generator -Ten Programmable Chip Selects with Integral Wait...

product image

80C188EB Picture
See larger image
SeekIC No. : 004253681 Detail

80C188EB: Features: Integrated Feature Set -Low-Power Static CPU Core -Two Independent UARTs each withan Integral Baud Rate Generator -Two 8-Bit Multiplexed IO - PortsProgrammable Interrupt Controller -Three ...

80C188EB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
80C188EB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Integrated Feature Set
   -Low-Power Static CPU Core
   -Two Independent UARTs each withan Integral Baud Rate Generator
   -Two 8-Bit Multiplexed IO
   - PortsProgrammable Interrupt Controller
   -Three Programmable 16-Bit TimerCounters
   -Clock Generator
   -Ten Programmable Chip Selects with Integral Wait-State Generator
   -Memory Refresh Control Unit
   -System Level Testing Support (ONCE Mode)
Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte IO
Speed Versions Available (5V)
   -25 MHz (80C186EB2580C188EB25)
   -20 MHz (80C186EB2080C188EB20)
   -13 MHz (80C186EB1380C188EB13)
Available in Extended Temperature Range ( -40to +85)
Speed Versions Available (3V)
   -16 MHz (80L186EB1680L188EB16)
   -13 MHz (80L186EB1380L188EB13)
   -8 MHz (80L186EB880L188EB8)
Low-Power Operating Modes
   -Idle Mode Freezes CPU Clocks but keeps Peripherals Active
   -Powerdown Mode Freezes All Internal Clocks
Supports 80C187 Numeric Coprocessor Interface (80C186EB PLCC Only)
Available In
   -80-Pin Quad Flat Pack (QFP)
   -84-Pin Plastic Leaded Chip Carrier(PLCC)
   -80-Pin Shrink Quad Flat Pack (SQFP)



Pinout

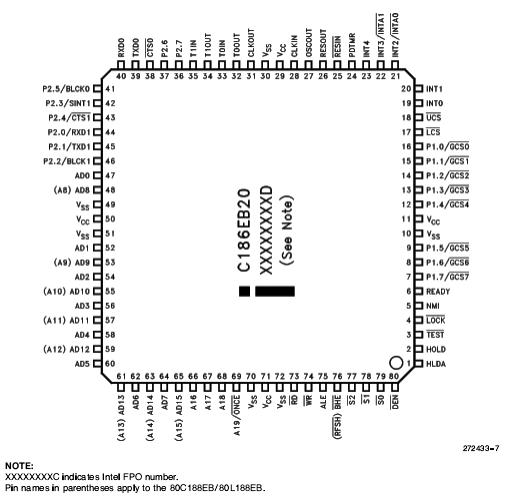

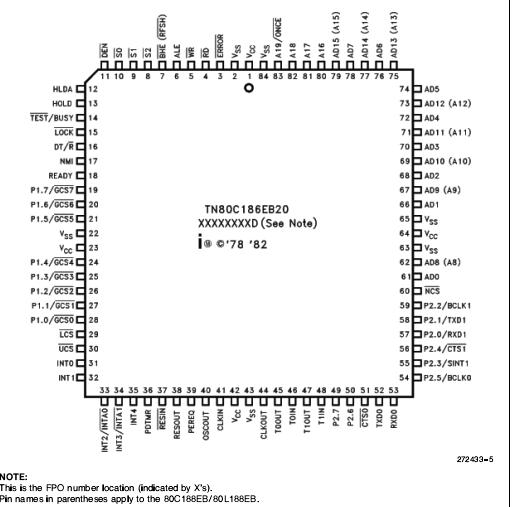

Connection Diagram Connection Diagram Connection Diagram


Specifications

Storage Temperature .............................-65to +150
Case Tempunder Bias ...................... .....-65to +120
Supply Voltage
    with RespecttoVSS............................ ...-0.5V to +6.5V
Voltage on other Pins
    with RespecttoVSS.......................... -0.5V toVcc +0.5V
NOTICE This data sheet contains preliminary info-mation on new products in production It is valid fo the devices indicated in the revision history Th specifications are subject to change without notice
WARNING Stressing the device beyond the ''Absolute Maximum Ratings'' may cause permanent damage These are stress ratings only Operation beyond the''Operating Conditions'' is not recommended and ex-tended exposure beyond the ''Operating Conditions''may affect device reliability



Description

The 80C186EB is a second generation CHMOS High-Integration microprocessor 80C186EB has features that are new to the 80C186 family and include a STATIC CPU core an enhanced Chip Select decode unit two independent Serial Channels IO ports and the capability of Idle or Powerdown low power modes
