80C196KC

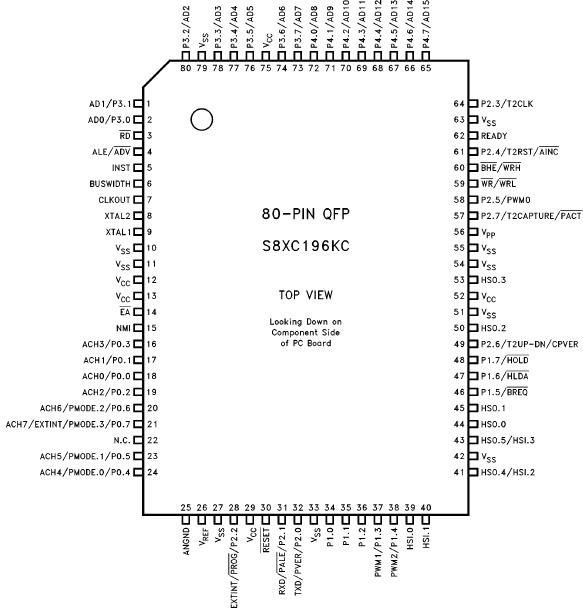

Pinout




Specifications

Ambient Temperature
     Under Bias ...............................................-55to +125
Storage Temperature ...................................-65to +150
Voltage On Any Pin to V_SS.........................-0.5V to +7.0V⁽¹⁾
Voltage from EA or
     V_PP to VSS or ANGND..............................................13.00V
Power Dissipation .....................................................1.5W⁽²⁾


Description

The 80C196KC 16-bit microcontroller is a high performance member of the MCS^® 96 microcontroller family. The 80C196KC is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an optional 16 Kbytes of ROM/OTPROM. Intel's CHMOS III process provides a high performance processor along with low power consumption.

The 87C196KC is an 80C196KC with 16 Kbytes on-chip OTPROM. The 83C196KC is an 80C196KC with 16 Kbytes factory programmed ROM. In this document, the 80C196KC will refer to all products unless otherwise stated.

Four high-speed capture inputs are provided to record times when events occur. Six high-speed outputs are available for pulse or waveform generation. The high-speed output can also generate four software timers or start an A/D conversion. Events can be based on the timer or up/down counter.

With the commercial (standard) temperature option, operational characteristics 80C196KC are guaranteed over the temperature range of 0 to +70. With the extended (Express) temperature range option, operational characteristics are guaranteed over the temperature range of -40 to +85. Unless otherwise noted, the specifications are the same for both options.

See the Packaging information of 80C196KC for extended temperature designators.
