80C196MC

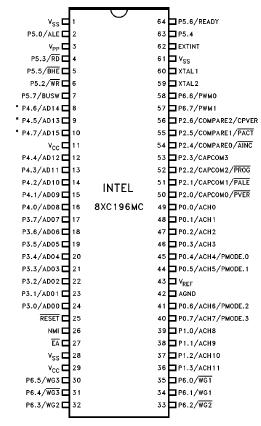

Pinout




Specifications

Ambient Temperature
     Under Bias ....................................-40 to +85
Storage Temperature ......................-65 to +150
Voltage from EAor VPP
    to V_SS or ANGND.......................................+13.00V
Voltage on V_PP or EQ
    to V_SS or ANGND ...........................-0.5V to 13.0V
Voltage on Any Other Pin
    to V_SS or ANGND ........................-0.5V to +7.0V⁽¹⁾
Power Dissipation ..........................................1.5W⁽²⁾


Description

The 8XC196MC is a 16-bit microcontroller designed primarily to control 3 phase AC induction and DC brushless motors. The 8XC196MC is based on Intel's MCS^® 96 16-bit microcontroller architecture and is manufactured with Intel's CHMOS process.

The 8XC196MC has a three phase waveform generator specifically designed for use in ``Inverter'' motor control applications. This peripheral allows for pulse width modulation, three phase sine wave generation with minimal CPU intervention. It generates 3 complementary non-overlapping PWM pulses with resolutions of 0.125 s (edge trigger) or 0.250 s (centered).

The 8XC196MC has 16 Kbytes on-chip OTPROM/ROM and 488 bytes of on-chip RAM. It is available in three packages; PLCC (84-L), SDIP (64-L) and EIAJ/QFP (80-L).

Note that the 64-L SDIP package does not include P1.4, P2.7, P5.1 and the CLKOUT pins.

Operational characteristics of 8XC196MC are guaranteed over the temperature range of -40 to +85.

The 87C196MC contains 16 Kbytes on-chip OTPROM. The 83C196MC contains 16 Kbytes on-chip ROM. All references to the 80C196MC also refers to the 83C196MC and 87C196MC unless noted.
