Part Number: 80C196MD
Description: The 8XC196MD is a 16-bit microcontroller designed primarily to control 3 phase AC induction and DC brushless motors. Th...
- Table of contents:
80C196MD
-
Suppliers
DataSheet
General Description
80C196MD General Description
The 8XC196MD is a 16-bit microcontroller designed primarily to control 3 phase AC induction and DC brushless motors. The 8XC196MD is based on Intel's MCS® 96 16-bit microcontroller architecture and is manufactured with Intel's CHMOS process.
The 8XC196MD has a three phase waveform generator specifically designed for use in ``Inverter'' motor control applications. This peripheral allows for pulse width modulation, three phase sine wave generation with minimal CPU intervention. It generates 3 complementary non-overlapping PWM pulses with resolutions of 0.125 s (edge trigger) or 0.250 s (centered).
The 8XC196MD has 16 Kbytes on-chip OTPROM/ROM and 488 bytes of on-chip RAM. It is available in two packages; PLCC (84-L) and EIAJ/QFP (80-L).
Operational characteristics are guaranteed over the temperature range of -40 to +85.
The 87C196MD contains 16 Kbytes on-chip OTPROM. The 83C196MD contains 16 Kbytes on-chip ROM. All references to the 80C196MD also refers to the 83C196MD and 87C196MD unless noted.
80C196MD Maximum Ratings
Ambient Temperature
Under Bias ...............................-40 to +85
Storage Temperature ................-65 to +150
Voltage from EA or VPP
to VSS or ANGND...................-0.5V to +13.00V
Voltage on Any Other Pin
to VSS or ANGND ...................-0.5V to a7.0V(1)
Power Dissipation ....................................1.5W(2)
Under Bias ...............................-40 to +85
Storage Temperature ................-65 to +150
Voltage from EA or VPP
to VSS or ANGND...................-0.5V to +13.00V
Voltage on Any Other Pin
to VSS or ANGND ...................-0.5V to a7.0V(1)
Power Dissipation ....................................1.5W(2)

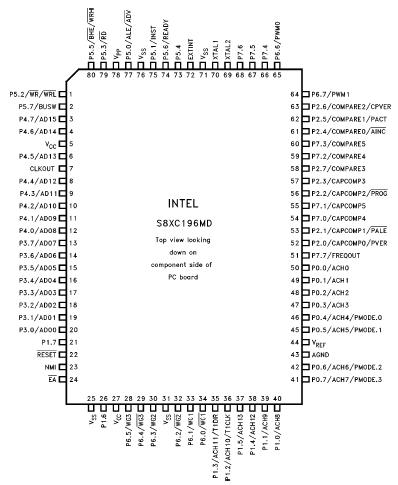

80C196MD Connection Diagram
80C196MD
PDF/DataSheet Download
- Datasheet: 80C196MD
- File Size: 1087753 KB
- Manufacturer: INTEL [Intel Corporation]
- Click here to Download
