80C528

Features: *80C51 instruction set 32k * 8 ROM (83C528) ROMless (80C528) 512 * 8 RAM Memory addressing capability 64k ROM and 64k RAM Three 16-bit counter/timers On-chip watchdog timer with oscillator Full duplex UART I2C serial interface Four 8-bit I/O ports*Power control modes: Idle mode...

product image

80C528 Picture
SeekIC No. : 004253706 Detail

80C528: Features: *80C51 instruction set 32k * 8 ROM (83C528) ROMless (80C528) 512 * 8 RAM Memory addressing capability 64k ROM and 64k RAM Three 16-bit counter/timers On-chip watchdog timer with osci...

floor Price/Ceiling Price

Part Number:
80C528
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*80C51 instruction set
  32k * 8 ROM (83C528)
  ROMless (80C528)
  512 * 8 RAM
  Memory addressing capability 64k ROM and 64k RAM
  Three 16-bit counter/timers
  On-chip watchdog timer with oscillator
  Full duplex UART
  I2C serial interface
  Four 8-bit I/O ports
*Power control modes:
  Idle mode
  Power-down mode
  Warm start from power-down
*CMOS and TTL compatible
*Extended temperature ranges ROM code protection
*7-source and 7-vector interrupt structure
*with 2 priority levels
*Up to 3 external interrupt request inputs
*Two programmable power reduction modes (Idle and Power-down)
*Termination of Idle mode by any interrupt,
external or WDT (watchdog) reset
*XTAL frequency range: 1.2 MHz to 16 MHz




Pinout

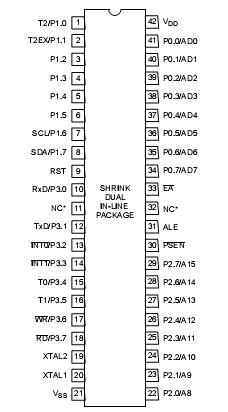

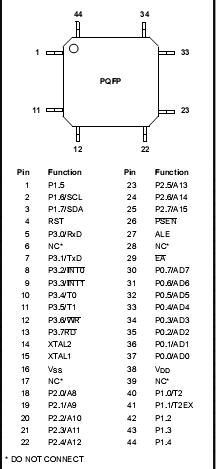

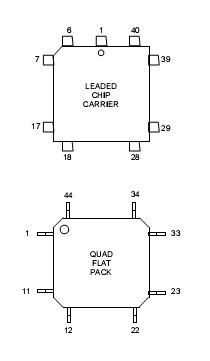

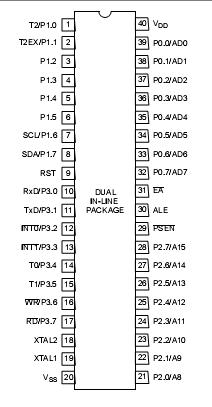

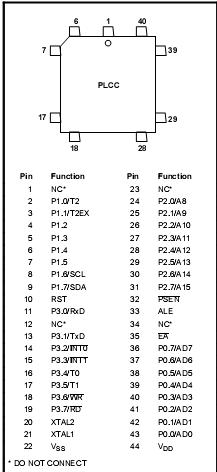

  Connection Diagram  Connection Diagram  Connection Diagram  Connection Diagram  Connection Diagram


Specifications

PARAMETER RATING UNI
Operating temperature under bias  0 to +70, or 40 to +85, or 40 to +125
Storage temperature range 65 to +150
Voltage on any other pin to VSS 0.5 to VDD +0.5 V
Input, output current on any two pins ±10 mA
Power dissipation
(based on package heat transfer limitations, not device power consumption)
1.0 W

NOTES:
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section of this specification is not implied.
2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.
3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS  unless otherwise noted.



Description

The 8XC528 single-chip 8-bit microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The 8XC528 has the same instruction set as the 80C51. Three versions of the derivative exist:
*83C528 - 32k bytes mask programmableROM
*80C528 - ROMless version of the83C528
*87C528 - 32k bytes EPROM (described In a separate data sheet)
80C528 provides architectural enhancements that make it applicable in a variety of applications in consumer, telecom and general control systems, especially in those systems which need large ROM and RAM capacity on-chip.

The 8XC528 contains a 32k * 8 ROM(83C528), a 512 * 8 RAM, four 8-bit I/Oports, two 16-bit timer/event counters(identical to the timers of the 80C51), a 16-bittimer (identical to the timer 2 of the 80C52), a watchdog timer with a separate oscillator, amulti-source, two-priority-level, nested
interrupt structure, two serial interfaces(UART and I2C-bus), and on-chip oscillator and timing circuits.

In addition, the 8XC528 has two softwareselectable modes of power reduction - idle mode and power-down mode. The idle mode freezes the CPU while allowing the RAM,timers, serial port, and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the oscillator, causing all other chip functions to be inoperative.
