80C575

Features:

*80C51 based architecture
  8k * 8 ROM (83C575)
  8k   8 EPROM (87C575)*
  ROMless (80C575)
  256 * 8 RAM
  Three 16-bit counter/timers
  Programmable Counter Array
  Enhanced UART
  Boolean processor
  Oscillator fail detect
  Low active reset
  Asynchronous low port reset
  Schmitt trigger inputs
  4 analog comparators
  Watchdog timer
  Low V_CCdetect
*Memory addressing capability
  64k ROM and 64k RAM
*Power control modes:
  Idle mode
  Power-down mode
*CMOS and TTL compatible
*4.0 to 16MHz
*Extended temperature ranges
*OTP package available

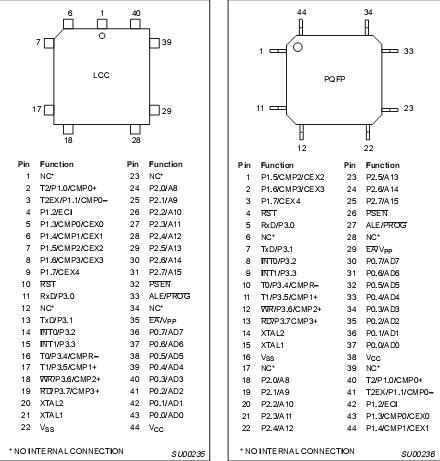

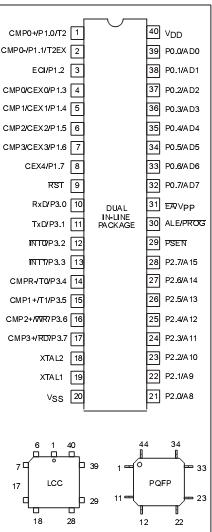

Pinout




Specifications

PARAMETER	RATING	UNIT
Operating temperature under bias	55to +125
Storage temperature range	-65 to +150
Voltage on EA/V pin to V	0 to +13.0	V
Voltage on any other pin to VSS	0.5 to +6.5	V
Maximum IOL per I/O pin	15	mA
Power dissipation (based on package heat transfer limitations, not device power consumption)	1.5	W

NOTES:
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only an
functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section
of this specification is not implied.
2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static
charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maxima.
3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to V_SS unless otherwise noted.


Description

The Philips 80C575/83C575/87C575 is a high-performance microcontroller fabricated with Philips high-density CMOS technology. The Philips CMOS technology combines the high speed and density characteristics of HMOS with the low power attributes of CMOS. Philips epitaxial substrate minimizes latch-up sensitivity.

The 8XC575 contains an 8k × 8 ROM (83C575) EPROM (87C575), a 256 × 8 RAM 32 I/O lines, three 16-bit counter/timers, a Programmable Counter Array (PCA), a seven-source, two-priority level nested interrupt structure, an enhanced UART, four analog comparators, power-fail detect and oscillator fail detect circuits, and on-chip oscillator and clock circuits.

In addition, the 8XC575 has a low active reset, and the port pins are reset to a low level. There is also a fully configurable watchdog timer, and internal power on clear circuit. The part includes idle mode and power-down mode states for reduced power consumption.
