Recovery Time
:
Maximum Power Dissipation
:
Mounting Style
: Through Hole
Configuration
: Single
Product
: Schottky Diodes
Peak Reverse Voltage
: 45 V
Forward Voltage Drop
: 0.55 V
Forward Continuous Current
: 8 A
Packaging
: Bulk
Operating Temperature Range
: - 65 C to + 125 C
Maximum Reverse Leakage Current
: 1000 uA
Package / Case
: DO-201AD
Max Surge Current
: 140 A
Features: • High Current Capability
• Low Stored Charge, Majority Carrier Conduction
• Low Power Loss/High Efficiency
• Highly Stable Oxide Passivated Junction
• Guard−Ring for Stress Protection
• Low Forward Voltage
• High Surge Capacity

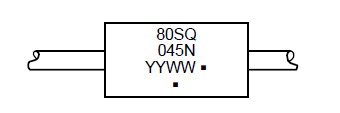

• These are Pb−Free Devices*Pinout
Specifications
| Rating |
Symbol |
Max |
Unit |
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage |
VRRm
VRWM
VR |
45 |
V |
Average Rectified Forward Current TL = 75°C
(PsiJL = 12°C/W, P.C. Board Mounting, Note 2) |
IO |
8.0 |
A |
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions
Halfwave, Single Phase, 60 Hz) |
IFSM |
140 |
A |
Operating and Storage Junction Temperature
Range (Reverse Voltage Applied) |
TJ,TSTG |
−65 to +125 |
|
| Voltage Rate of Change (Rated VR) |
dv/dt |
10 |
V/ns |
Description80SQ045N employ the Schottky Barrier principle in a large area metal−to−silicon power diode. State−of−the−art geometry features epitaxial construction with oxide passivation and metal overlap contact. 80SQ045N is suited for use as rectifiers in low−voltage, high−frequency inverters, free wheeling diodes, and polarity protection diodes.
Parameters: | Technical/Catalog Information | 80SQ045N |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 8A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 1mA @ 45V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Axial |
| Package / Case | DO-201AD, Axial |
| Packaging | Bulk |
| Capacitance @ Vr, F | - |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | 80SQ045N
80SQ045N
|
80SQ045N Data Sheet
