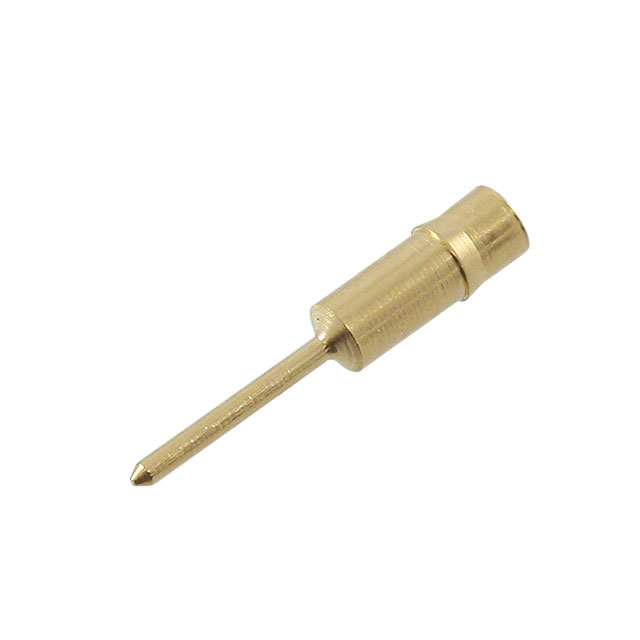

8114-0-15-15-16-27-04-0: CONN RECEPT PIN .022-.034" .200"

8114-0-15-15-16-27-04-0 Data Sheet

US $ .11~.41 / Piece | Get Latest Price

Part Number:: 8114-0-15-15-16-27-04-0
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000
1000~2500

Unit Price
$.41
$.29
$.25
$.22
$.19
$.16
$.16
$.14
$.11

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

8114 evaluate

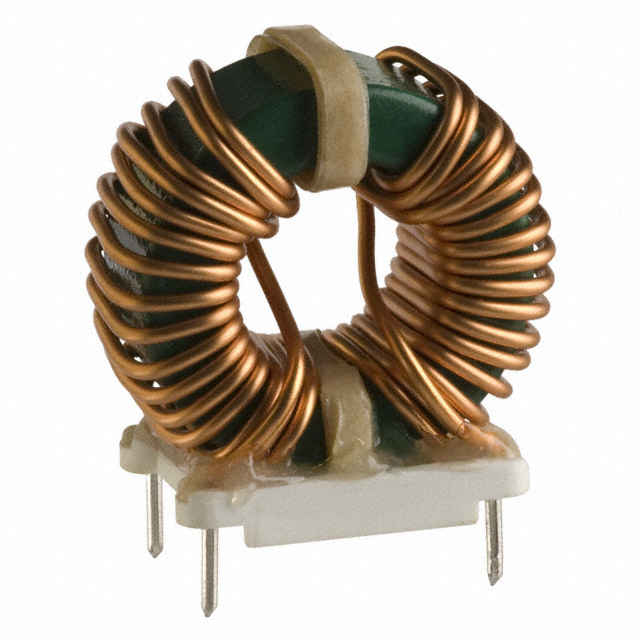

Common Mode Inductors (Chokes) 2.5mH MIN
8114-0-15-01-16-01-04-0 evaluate
CONN RECEPT PIN .022-.034" .200"
8114-0-15-01-16-27-04-0 evaluate
CONN RECEPT PIN .022-.034" .200"

Product Details

Quick Details

Series:	8114	Manufacturer:	Mill-Max Manufacturing Corp.
Tail Type:	Standard Tail	Termination:	Press-Fit
Length - Overall:	0.370" (9.40mm)	Accepts Pin Diameter:	0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Mounting Hole Diameter:	0.065" (1.65mm)	Pin Hole Diameter:	0.051" (1.30mm)
Off-State Capacitance CO :	15 pF to 60 pF, 25 pF to 105 pF	Flange Diameter:	-
Tail Diameter:	0.020" (0.51mm)	Socket Depth:	0.150" (3.81mm)
Contact Material:	Beryllium Copper	Contact Finish:	Gold
Contact Finish Thickness:	30µin (0.76µm)

Description

Contact Material: Beryllium Copper
Contact Finish: Gold
Contact Finish Thickness: 30µin (0.76µm)
Flange Diameter: -
Packaging: Bulk
Socket Depth: 0.150" (3.81mm)
Manufacturer: Mill-Max Manufacturing Corp.
Tail Type: Standard Tail
Tail Diameter: 0.020" (0.51mm)
Accepts Pin Diameter: 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Pin Hole Diameter: 0.051" (1.30mm)
Termination: Press-Fit
Mounting Hole Diameter: 0.065" (1.65mm)
Series: 8114
Length - Overall: 0.370" (9.40mm)

Parameters:

Technical/Catalog Information	8114-0-15-15-16-27-04-0
Vendor	Mill Max
Category	Connectors
Type	Socket, Tail
Mounting Type	Press Fit
Outside Diameter	1.626 mm [Typ]
Inner Diameter	0.864 mm [Typ]
Length Below Board	9.398 mm [Typ]
Socket Depth	3.810 mm [Typ]
Through Hole Size	1.650 mm [Min]
Feature(s)	Closed Bottom
Packaging	Bulk
Contact Material	Beryllium Copper
Contact Finish	Gold
Operating Temperature	-55 °C [Min]
Operating Temperature	125 °C [Max]
Other Names	8114 0 15 15 16 27 04 0 8114015151627040 8114 015151627040 ND 8114015151627040ND 8114-015151627040
