82443GX

Features:

* Processor/System bus support
   - Optimized for Pentium^(R)  II and Pentium^(R) II Xeon(TM) processors at  100 MHz system bus frequency
   - Supports full symmetric Multiprocessor (SMP) Protocol for up to two processors; I/O APIC related buffer management support  (WSC# signal)
   - In-order transaction and dynamic deferred transaction support
   - Supports GTL+ and AGTL+ bus driver technology  (gated GTL+ receivers for reduced power)
* Integrated DRAM controller
   - 16 MB to 2 GB
   - Supports up to 4 double-sided DIMMs (8 rows memory)
   - 64-bit data interface with ECC support (SDRAM only)
   - Unbuffered and Registered  SDRAM (Synchronous) Support (x-1-1-1 access @ 100 MHz)
   - Enhanced SDRAM Open Page  Architecture Support for  16-, 64-, 128-, and 256-Mbit* DRAM devices  with 2k, 4k and 8k page sizes
* PCI bus interface
   - PCI Rev. 2.1, 3.3V and 5V, 33MHz interface compliant
   - PCI Parity Generation Support
   - Data streaming support from PCI to DRAM
   - Delayed Transaction support for PCI-DRAM Reads
   - Supports concurrent CPU, AGP and PCI transactions to main memory
* AGP interface
   - Supports single AGP compliant device (AGP-66/133 3.3V device)
   - AGP Specification Rev 1.0 compliant
   - AGP-data/transaction flow optimized  arbitration mechanism
   - AGP side-band interface for efficient request pipelining without interfering with the data streams
   - AGP-specific data buffering
   - Supports concurrent CPU, AGP and PCI transactions to main memory
   - AGP high-priority transactions ("expedite") support
* Power management functions
   - Stop Clock Grant and Halt special cycle translation (host to PCI Bus)
   - "Deep Green" Desktop support for system suspend/resume (i.e., DRAM and power-on suspend)
   - SDRAM self-refresh power down support in suspend mode
   - Independent, internal dynamic clock gating reduces average power dissipation
   - Static STOP CLOCK support
   - Power-on Suspend mode
   - Suspend to DRAM
   - ACPI compliant power management
* Packaging/Voltage
   -492 Pin BGA
   - 3.3V core & mixed 3.3V & GTL I/O
* Supporting I/O Bridge
   - System Management Bus (SMB) with support for DIMM Serial Presence Detect (SPD)
   - PCI-ISA Bridge (PIIX4E)
   - Power Management Support
   - 3.3V core and mixed 5V, 3.3V I/O and interface to the 2.5V CPU signals via open-drain output buffers

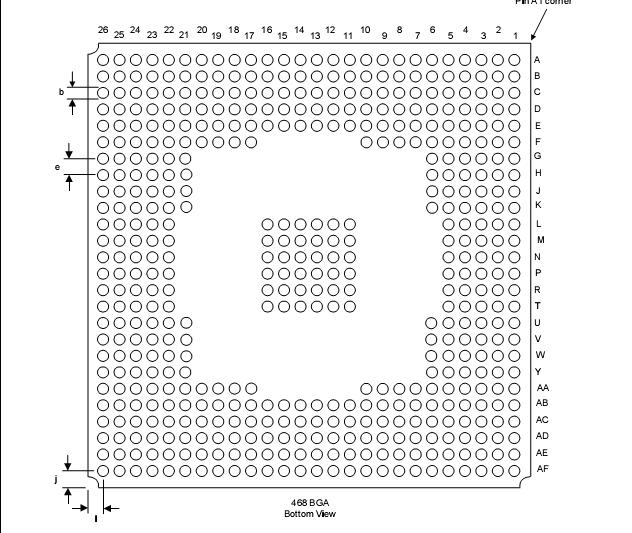

Pinout




Description

The ^(R) Intel  440GX AGPset is intended for the Pentium^(R)   II processor and Pentium^(R)   II Xeon(TM)  processor platforms. The 82443GX Host Bridge provides a Host-to-PCI bridge, optimized  DRAM controller and data path, and an Accelerated Graphic Port (AGP) interface. AGP is a high performance, component level interconnect targeted at 3D graphics applications and is based on a set of performance enhancements to PCI.

The I/O subsystem portion of the Intel ^(R) 440GX AGPset platform is based on the 82371EB
(PIIX4E), a highly integrated version of the Intel's PCI-ISA bridge family.
