83C166

PinoutSpecificationsAmbient temperature under bias (TA):SAB 83C166-5M, SAB 80C166-M.................................................................................. .......0 to + 70 SAB 83C166-5M-T3, SAB 80C166-M-T3......................................................................... 40 to + ...

product image

83C166 Picture
SeekIC No. : 004255908 Detail

83C166: PinoutSpecificationsAmbient temperature under bias (TA):SAB 83C166-5M, SAB 80C166-M.................................................................................. .......0 to + 70 SAB 83C166-5M-T...

floor Price/Ceiling Price

Part Number:
83C166
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

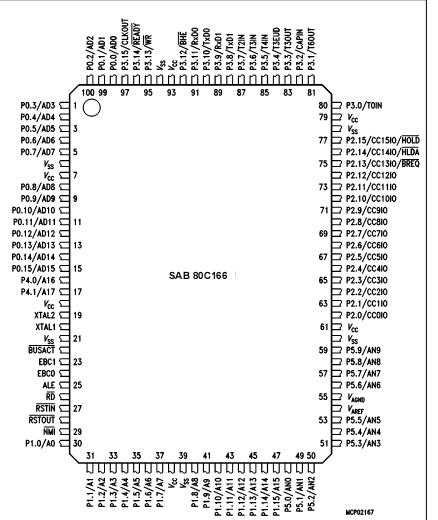

  Connection Diagram


Specifications

Ambient temperature under bias (TA):
SAB 83C166-5M, SAB 80C166-M.................................................................................. .......
0 to + 70
SAB 83C166-5M-T3, SAB 80C166-M-T3......................................................................... 40 to + 85
Storage temperature (TST) ......................................................................................... 65 to + 150
Voltage on VCC pins with respect to ground (VSS) ..................................................... 0.5 to + 6.5 V
Voltage on any pin with respect to ground (VSS)................................................. 0.5 to VCC + 0.5 V
Input current on any pin during overload condition.................................................... 10 to + 10 mA
Absolute sum of all input currents during overload condition ................................................|100 mA|
Power dissipation.......................................................................................................................... 1 W
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. During overload conditions (VIN > VCC or VIN < VSS) the voltage on pins with respect to ground (VSS) must not exceed the values defined by the Absolute Maximum Ratings.
