Product Details

Description



Features:

• Single supply voltage 1.8V to 6.0V
• Frequency from DC to 12MHz
• 80C51 based architecture
   4k * 8 ROM (64k external)
   128 * 8 RAM (64k external)
   Four 8-bit I/O ports
   Two 16-bit timer/counters
   A thirteen-source, two-level, nested priority interrupt structure
   10 external interrupts
• Fully static 80C51 CPU
• I2C Serial Interface
• Two power control modes
   Idle mode
   Power-down mode can be terminated by reset or external interrupt
• Wake-up via external interrupts at port 1
• Single supply voltage 1.8V to 6.0V
• Frequency range of DC to 12MHz
• On-chip oscillator (quartz crystal, ceramic resonator, RC, LC)
• Very low power consumption
• Operating temperature range:
   40 to +85°C

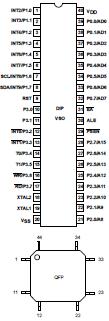

Pinout

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply voltage 0.5 to +6.5 V
All input voltages 0.5 to VDD +0.5 V
DC current into any input or output 5 mA
Total power dissipation 300 mW
Storage temperature range 65 to +150 °C
Operating ambient temperature range 40 to +85 °C
Operating junction temperature 125 °C



Description

The 80CL410/83CL410 (hereafter generically referred to as 8XCL410) is manufactured in an advanced CMOS process that allows the part to operate at supply voltages down to 1.8V and oscillator frequencies down to DC.The 8XCL410 has the same instruction set as the 80C51.

The 8XCL410 features a 4k byte ROM (83CL410), 128 bytes RAM (both ROM and RAM are externally expandable to 64k bytes), four 8-bit ports, two 16-bit timer/counters, an I2C serial interface, a thirteen source, two priority level nested interrupt structure, and on-chip oscillator circuitry suitable for quartz crystal, ceramic resonator, RC, or LC.
