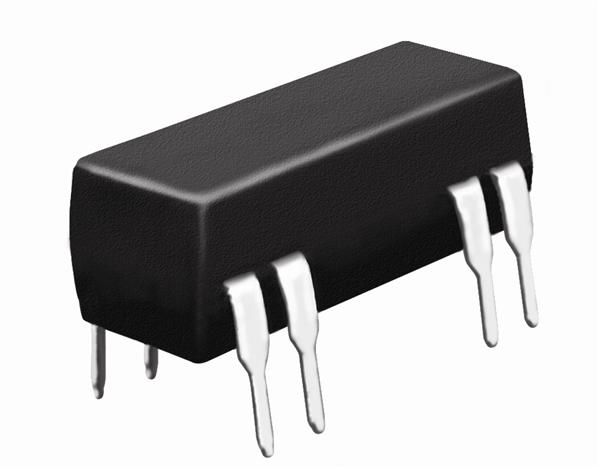

Reed Relay REED RELAY SPST 12V COAX SHIELD
8L02-24-01: Reed Relay REED RELAY SPST 12V COAX SHIELD
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Contact Form : | 2 Form A (DPST-NO) | Coil Voltage : | 24 V |
| Maximum Switched Current : | 0.5 A | Coil Suppression Diode : | Yes |
| Coil Resistance : | 2000 Ohms |
| Technical/Catalog Information | 8L02-24-01 |
| Vendor | Coto Technology |
| Category | Relays |
| Relay Type | Reed |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Circuit | DPST (2 Form A) |
| Contact Rating @ Voltage | 0.5A @ 200VAC/DC |
| Coil Voltage | 24VDC |
| Control Off Voltage (Min) | 2 VDC |
| Control On Voltage (Max) | 19.2 VDC |
| Coil Current | 12mA |
| Coil Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 8L02 24 01 8L022401 306 1040 ND 3061040ND 306-1040 |
