92FG

BOARD LEVEL HEAT SINK

product image

92FG Picture
See larger image
SeekIC No. : 004258214 Detail

92FG: BOARD LEVEL HEAT SINK

92FG Data Sheet

floor Price/Ceiling Price

US $ .96~.96 / Piece | Get Latest Price
Part Number:
92FG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~1000
  • Unit Price
  • $.96
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

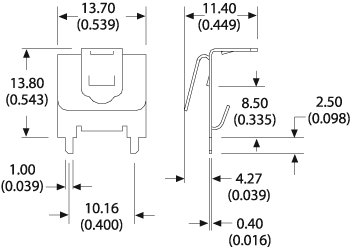

Connection Diagram


Specifications

Part # Description Finish Board Mounting
92FG Lost cost brass clip on heat sink unfinished View Hole Dimensions



Description

Thermal Resistance 36.10

92FG Thermal resistance value is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information92FG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height0.543" (13.80mm)
MaterialBrass
Package CooledTO-92
Power Dissipation @ Temperature Rise1W @ 40°C
Thermal Resistance @ Forced Air Flow17.5°C/W @ 300 LFM
Outline13.70mm x 11.40mm
Thermal Resistance @ Natural36.1°C/W
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 92FG
92FG
