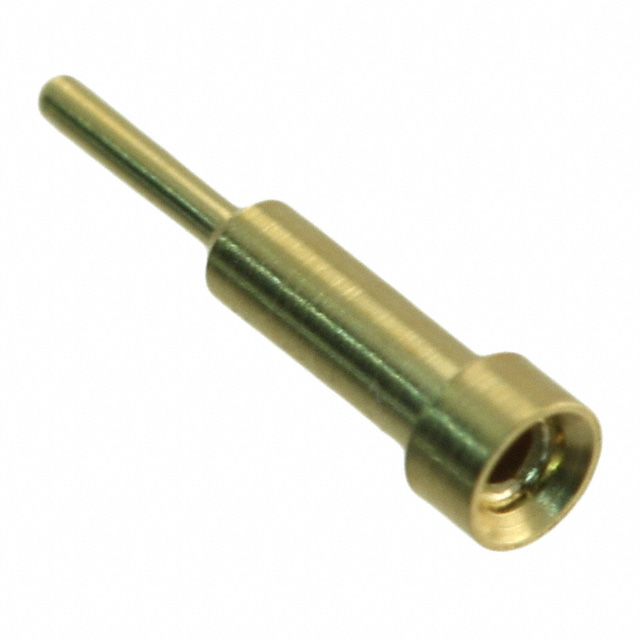

Circuit Board Hardware - PCB 10u AU OVER NI 11 CON
9407-0-15-15-11-27-10-0: Circuit Board Hardware - PCB 10u AU OVER NI 11 CON
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $231.57 - 285.59 / Piece
Multi-Paired Cable 22AWG 1PR UNSHLD 1000ft BOX CHROME
US $116.96 - 133.09 / Piece
Multi-Paired Cable 22AWG 1PR UNSHLD 500ft BOX CHROME
| Technical/Catalog Information | 9407-0-15-15-11-27-10-0 |
| Vendor | Mill Max |
| Category | Connectors |
| Type | Socket, Tail |
| Mounting Type | Solder Mount |
| Flange Diameter | 1.397 mm [Typ] |
| Flange Thickness | 0.787 mm [Nom] |
| Outside Diameter | 0.965 mm [Typ] |
| Inner Diameter | 0.559 mm [Typ] |
| Length Above Board | 0.787 mm [Typ] |
| Length Below Board | 5.207 mm [Typ] |
| Socket Depth | 3.226 mm [Typ] |
| Through Hole Size | 1.016 mm [Min] |
| Feature(s) | Closed Bottom |
| Packaging | Bulk |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Operating Temperature | -55 °C [Min] |
| Operating Temperature | 125 °C [Max] |
| Other Names | 9407 0 15 15 11 27 10 0 9407015151127100 9407 015151127100 ND 9407015151127100ND 9407-015151127100 |
