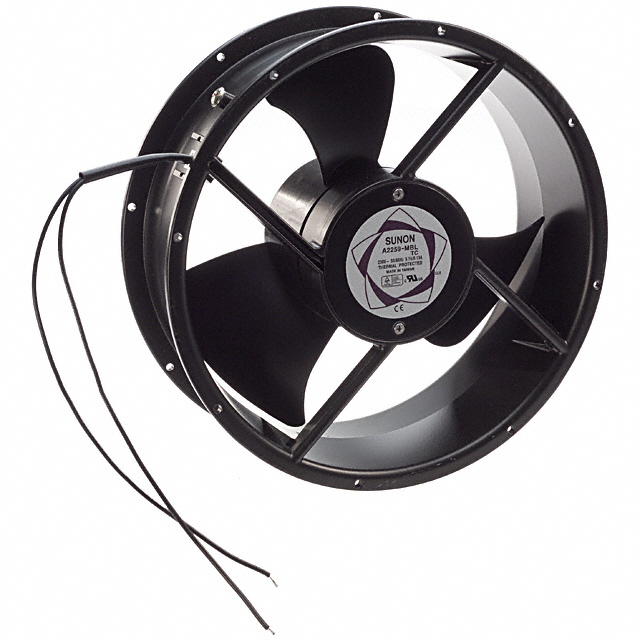

A2259-HBL.TC.GN: FAN 220/240 VAC 254 X 89MM

A2259-HBL.TC.GN Data Sheet

US $ 50.77~50.77 / Piece | Get Latest Price

Part Number:: A2259-HBL.TC.GN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~6

Unit Price
$50.77

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

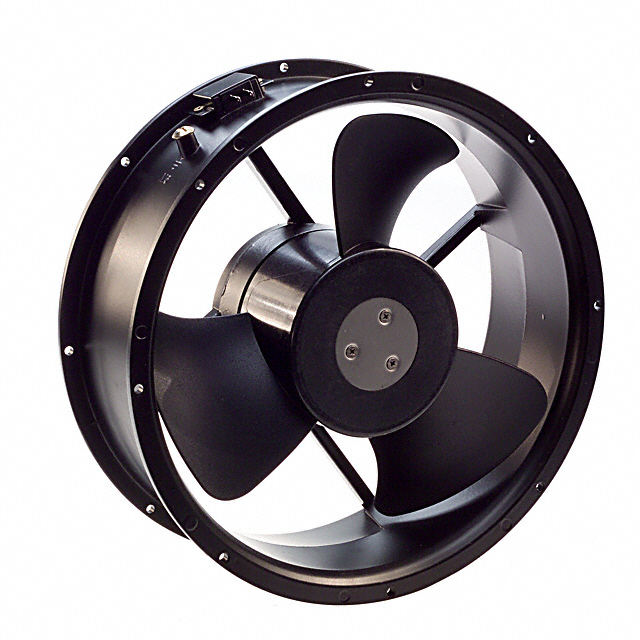

A2259-HBT.TC.GN evaluate
US $32.63 - 32.63 / Piece

FAN 220-240 254 X 89MM
A2259MBT-TC evaluate
FAN 220/240 254 X 89MM
A2259-MBT.TC.GN evaluate
US $50.77 - 50.77 / Piece

FAN 220/240 254 X 89MM

Product Details

Quick Details

Series:	A2259	Manufacturer:	Sunon Fans
Clamping Voltage :	28.6 V	Air Flow:	585.0 CFM (16.56m³/min)
Bearing Type:	Ball	Fan Type:	Tubeaxial
Features:	-	Noise:	60 dB(A)
Power (Watts):	60W	RPM:	1900 RPM
Size / Dimension:	Round - 254mm Dia x 89mm W	Static Pressure:	0.310 in H2O (77.2 Pa)
Termination:	2 Wire Leads	Voltage - Rated:	220/240VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Manufacturer: Sunon Fans
RPM: 1900 RPM
Voltage - Rated: 220/240VAC
Size / Dimension: Round - 254mm Dia x 89mm W
Noise: 60 dB(A)
Power (Watts): 60W
Static Pressure: 0.310 in H2O (77.2 Pa)
Series: A2259
Air Flow: 585.0 CFM (16.56m³/min)
Weight: 5.1 lbs (2.3kg)

Parameters:

Technical/Catalog Information	A2259-HBL.TC.GN
Vendor	Sunon Fans
Category	Fans
Air Flow	585.0 CFM (16.56m³/min)
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	60 dB(A)
Power (Watts)	60W
Size / Dimension	Round - 254mm Dia x 89mm W
Static Pressure	0.270 in H2O (67.2 Pa)
Termination	2 Wire Leads
Voltage Rating	230VAC
RPM	1900 RPM
Weight	5.1 lbs (2.31kg)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	A2259 HBL TC GN A2259HBLTCGN 259 1313 ND 2591313ND 259-1313
