A23L9316
-
Suppliers
DataSheet
General Description
A23L9316 Maximum Ratings
Ambient Operating Temperature . . . . . . 0°C to + 70°C
Storage Temperature . . . . . . . . . . . . -65°C to + 125°C
Output Voltage . . . . . . . . . . . . . . . . . -0.5V to VCC + 0.5V
Input Voltage . . . . . . . . . . . . . . . . . . -0.5V to VCC + 0.5V
A23L9316 Features
512K x 16 bit or 1M x 8 bit organization
Supply voltage range: 2.7V~3.6V
Access time: 70ns (max.)/3.0V~3.6V 100ns (max.)/2.7V~3.6V
Current: Operating: 30mA (typ.)/3.3V Standby: 10µA (typ.)/3.3V
Three-state outputs for wired-OR expansion
Full static operation
All inputs and outputs are directly TTL-compatible
Flash memory pinout compatible with AMD (A23L93161) and Intel (A23L93162)
Available in 44-pin SOP, 48-pin TSOP (forward, reverse type and flash memory's pinouts compatible) packages
Supply voltage range: 2.7V~3.6V
Access time: 70ns (max.)/3.0V~3.6V 100ns (max.)/2.7V~3.6V
Current: Operating: 30mA (typ.)/3.3V Standby: 10µA (typ.)/3.3V
Three-state outputs for wired-OR expansion
Full static operation
All inputs and outputs are directly TTL-compatible
Flash memory pinout compatible with AMD (A23L93161) and Intel (A23L93162)
Available in 44-pin SOP, 48-pin TSOP (forward, reverse type and flash memory's pinouts compatible) packages

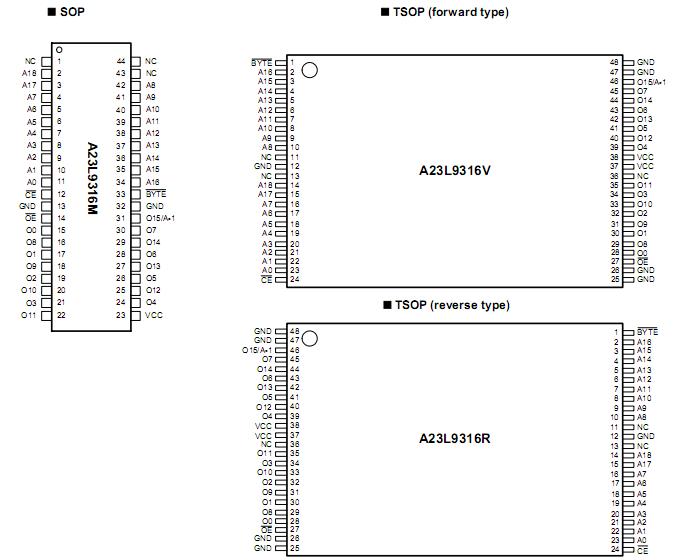

A23L9316 Connection Diagram
A23L9316
PDF/DataSheet Download
- Datasheet: A23L9316
- File Size: 266420 KB
- Manufacturer: AMICC [AMIC Technology]
- Click here to Download
