Part Number: A276308A
Description: The A276308A chip is a high-performance 524,288 bit one-time programmable read only memory (OTP EPROM)...
- Table of contents:
A276308A
-
Suppliers
DataSheet
General Description
A276308A General Description
The A276308A chip is a high-performance 524,288 bit one-time programmable read only memory (OTP EPROM) organized as 64K by 8 bits. The A276308A requires only 5V power supply in normal read mode operation and any input signals are TTL levels. The A276308A is available in industry standard 28 pin dual-in- line and 32 lead PLCC packages.
A276308A Maximum Ratings
Ambient Operating Temperature (TA) . . . . -10°C to +85°C
Storage Temperature Plastic Package (TSTG) . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 125°C
Applied Input Voltage (VI):
All Pins Except A9, VPP and VCC . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.6V to VCC + 0.6V
A9, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.6V to 13.5V
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.6V to 7.0V
Output Voltage (VO) . . . . . . . . . . . . . . . -0.6V to 7.0V (Note 1)
Storage Temperature Plastic Package (TSTG) . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 125°C
Applied Input Voltage (VI):
All Pins Except A9, VPP and VCC . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.6V to VCC + 0.6V
A9, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.6V to 13.5V
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.6V to 7.0V
Output Voltage (VO) . . . . . . . . . . . . . . . -0.6V to 7.0V (Note 1)
A276308A Features
65,536 X 8 bit organization
Programming voltage: 12.75V
Access time: 55/70/90 ns (max.)
Current: Operating: 30mA (max.) at 5MHz
Standby: 100mA (max.)
All inputs and outputs are directly TTL-compatible
Available in 28-pin DIP and 32-PLCC packages
Programming voltage: 12.75V
Access time: 55/70/90 ns (max.)
Current: Operating: 30mA (max.) at 5MHz
Standby: 100mA (max.)
All inputs and outputs are directly TTL-compatible
Available in 28-pin DIP and 32-PLCC packages

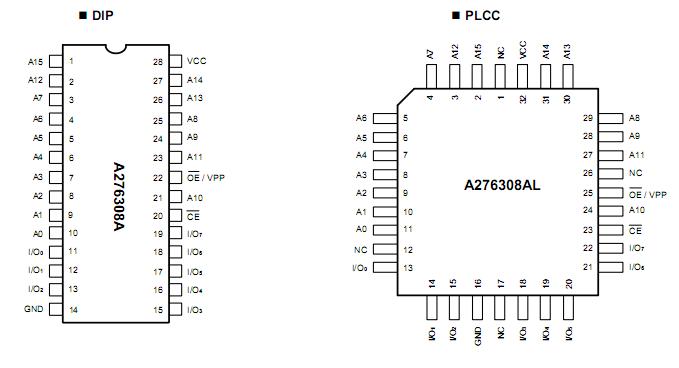

A276308A Connection Diagram
A276308A
