Product Details

Description



Features:

 · Supports Common Flash Memory Interface (CFI)
 · Erase Suspend/Erase Resume
     - Suspends erase operations to allow programming in same bank
 · Software temporary sector/sector block unprotect command
 · Software sector protect/unprotect command
 · Data Polling and Toggle Bits
     - Provides a software method of detecting the status of program or erase cycles
 · Unlock Bypass Program command
    - Reduces overall programming time when issuing multiple program command sequences


Pinout

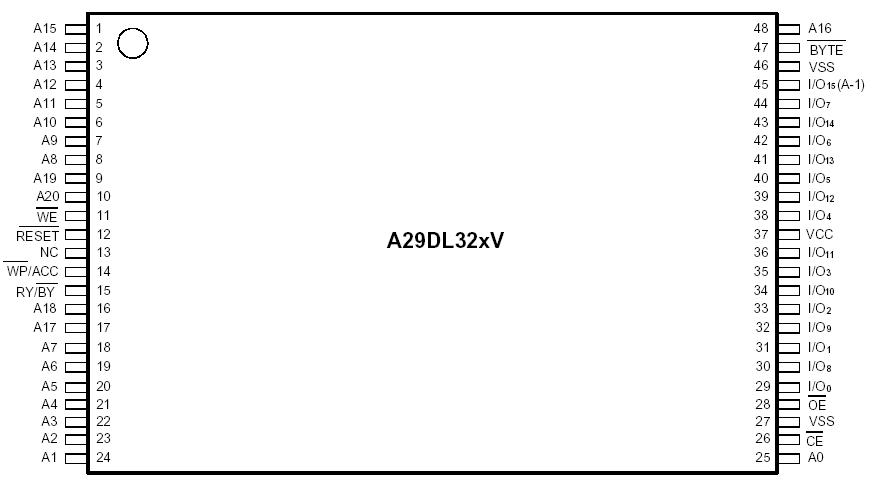

Connection Diagram


Specifications

Storage Temperature Plastic Packages. . . -65°C to + 150°C
Ambient Temperature with Power Applied. -65°C to + 125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . .. -0.5V to +4.0V
A9, OE & RESET (Note 2) . . . . . . . . . . . . . . . .  -0.5V to +12.5V
WP /ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +10.5V
All other pins (Note 1) . . . . . . . . . . . . . . .. -0.5V to VCC + 0.5V
Output Short Circuit Current (Note 3) . . . . . . . . . . . . . . 200mA


Description

The A29DL32x family consists of 32 megabit, 3.0 volt-only flash memory devices, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on I/O0I/O15; byte mode data appears on I/O0I/O7. The device is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The device is available with an access time of 70, 80, 90, or 120 ns.

The devices A29DL32x are offered in 48-pin TSOP and 48-ball Fine-pitch TFBGA. Standard control pins-chip enable (CE), write enable ( WE ), and output enable ( OE )-control normal read and write operations, and avoid bus contention issues. The device requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
