MFG:Hirose Electric Co Ltd Category:Connectors

Five Points

Category: Connectors

MFG: Hirose Electric Co Ltd

Descriptions: CONN HEADER 16POS 2MM GOLD SMD

Price Break

1
25
100
250
500
1000
2500
5000
10000

Unit Price

1.82000
1.40000
1.12000
.92960
.84000
.74480
.71400
.70000
.68600

Extended Price

1.82
35.00
112.00
232.40
420.00
744.80
1785.00
3500.00
6860.00

(All prices are in USD) Prices for reference only

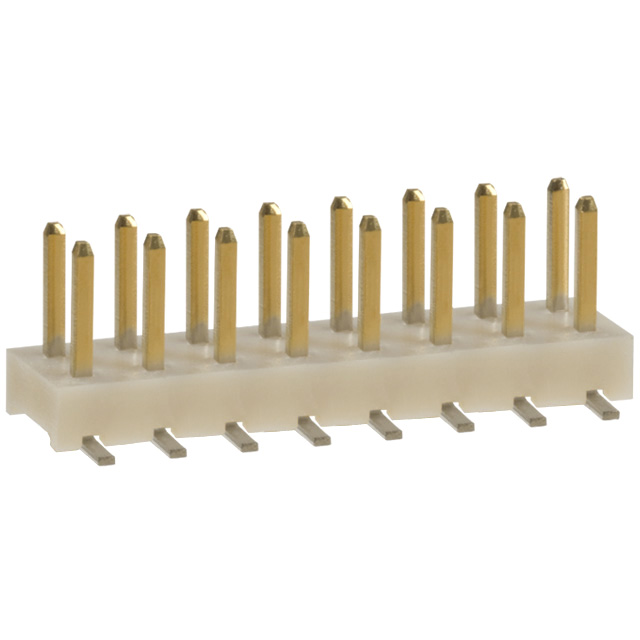

CONN HEADER 16POS 2MM GOLD SMD

Technical/Catalog Information	A3-16PA-2SV
Vendor	Hirose Electric Co Ltd
Category	Connectors
Color	Brown
Connector Type	Header, Unshrouded
Contact Finish	Gold
Contact Mating Length	0.138" (3.50mm)
Features	-
Mounting Type	Surface Mount
Number of Contacts Loaded	All
Number of Rows	2
Pitch	0.079" (2.00mm)
Row Spacing	0.079" (2.00mm)
Packaging	Bulk
Fastening Type	-
Termination	Solder
Contact Finish Thickness	-
Number of Positions	16
Contact Type	Male Pin
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	A3 16PA 2SV A316PA2SV H1787 ND H1787ND H1787
