A3425 General Description

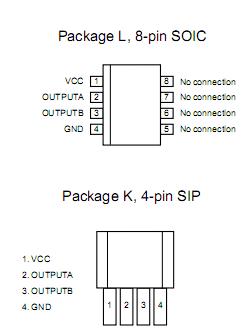

A3425 Maximum Ratings
Supply Voltage, VCC .......................................26.5 V
Reverse-Battery Voltage, VRCC...............................18 V
Output Off Voltage, VOUTPUT.....................................VCC
Output Sink Current, IOUTPUT(SINK).....Internally Limited
Magnetic Flux Density, B........................................Unlimited
Operating Temperature
Ambient, TA, Range E................................40ºC to 85ºC
Range L............................40ºC to 150ºC
Maximum Junction, TJ(max).......................................165ºC
Storage Temperature, T ............................65ºC to 170ºC
A3425 Features
• Two matched Hall effect switches on a single substrate
• Sensor element spacing approximately 1 mm
• Superior temperature stability
• 3.3 V to 18 V operation
• Integrated ESD diode from OUTPUT and VCC pins to GND
• High-sensitivity switchpoints
• Robust structure for EMC protection
• Solid-state reliability
