Part Number: A43E26161
Description: The A43E26161 is 67,108,864 bits Low Power synchronous high data rate Dynamic RAM organized as 4 X 1,0...
- Table of contents:
A43E26161
-
Suppliers
DataSheet
General Description
A43E26161 General Description
The A43E26161 is 67,108,864 bits Low Power synchronous high data rate Dynamic RAM organized as 4 X 1,048,576 words by 16 bits, fabricated with AMIC's high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device to be useful for a variety of high bandwidth, high performance memory system applications.
A43E26161 Maximum Ratings
Voltage on any pin relative to VSS (Vin, Vout ) . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.0V to +2.6V
Voltage on VDD supply relative to VSS (VDD, VDDQ )
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-1.0V to + 2.6V
Storage Temperature (TSTG) . . . . . . . . . -55°C to +150°C
Soldering Temperature X Time (TSLODER) . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . . 0.8W
Short Circuit Current (Ios) . . . . . . . . . . . . . . . . . . . . 50mA
A43E26161 Features
Low power supply
- VDD: 1.8V VDDQ : 1.8V
LVCMOS compatible with multiplexed address
Four banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Deep Power Down Mode
DQM for masking
Clock Frequency (max) : 105MHz @ CL=3 (-95)
Auto & self refresh
64ms refresh period (4K cycle)
Self refresh with programmable refresh period through EMRS cycle
Programmable Power Reduction Feature by partial array activation during Self-refresh through EMRS cycle
Industrial operating temperature range: -25ºC to +85ºC for -U series.
Available in 54 Balls CSP (8mm X 8mm) and 54-pin TSOP(II) packages.
- VDD: 1.8V VDDQ : 1.8V
LVCMOS compatible with multiplexed address
Four banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Deep Power Down Mode
DQM for masking
Clock Frequency (max) : 105MHz @ CL=3 (-95)
Auto & self refresh
64ms refresh period (4K cycle)
Self refresh with programmable refresh period through EMRS cycle
Programmable Power Reduction Feature by partial array activation during Self-refresh through EMRS cycle
Industrial operating temperature range: -25ºC to +85ºC for -U series.
Available in 54 Balls CSP (8mm X 8mm) and 54-pin TSOP(II) packages.

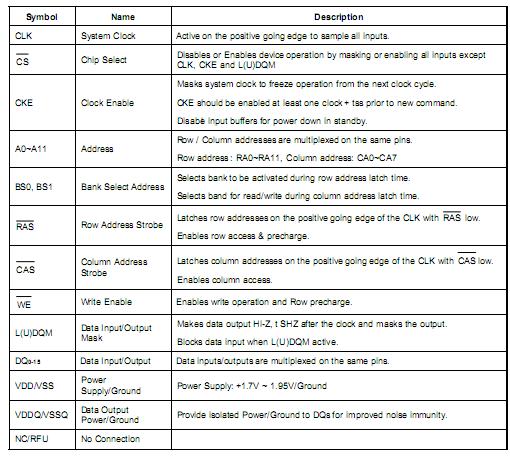

A43E26161 Connection Diagram
A43E26161
