Part Number: A43L2616
Description: The A43L2616 is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 X 1,048,576 word...
- Table of contents:
A43L2616
-
Suppliers
DataSheet
General Description
A43L2616 General Description
The A43L2616 is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 X 1,048,576 words by 16 bits, fabricated with AMIC's high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device to be useful for a variety of high bandwidth, high performance memory system applications.
A43L2616 Maximum Ratings
Voltage on any pin relative to VSS (Vin, Vout ) . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.0V to +4.6V
Voltage on VDD supply relative to VSS (VDD, VDDQ )
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-1.0V to +4.6V
Storage Temperature (TSTG) . . . . . . . . . -55°C to +150°C
Soldering Temperature X Time (TSLODER) . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . . . 1W
Short Circuit Current (Ios) . . . . . . . . . . . . . . . . . . . . 50mA
A43L2616 Features
JEDEC standard 3.3V power supply
LVTTL compatible with multiplexed address
Four banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2,3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Clock Frequency: 166MHz @ CL=3
143MHz @ CL=3
183Mhz @ CL=3
(183Mhz is available only for V grade)
Burst Read Single-bit Write operation
DQM for masking
Auto & self refresh
64ms refresh period (4K cycle)
54 Pin TSOP (II)
Low Self Refresh Current version for V grade
LVTTL compatible with multiplexed address
Four banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2,3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Clock Frequency: 166MHz @ CL=3
143MHz @ CL=3
183Mhz @ CL=3
(183Mhz is available only for V grade)
Burst Read Single-bit Write operation
DQM for masking
Auto & self refresh
64ms refresh period (4K cycle)
54 Pin TSOP (II)
Low Self Refresh Current version for V grade

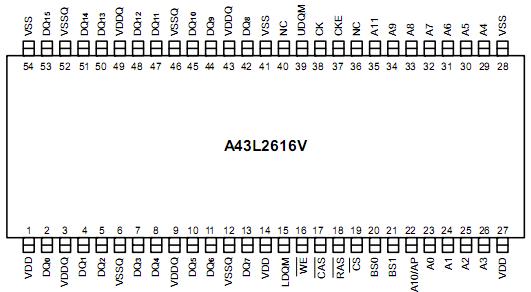

A43L2616 Connection Diagram
A43L2616
