Product Details

Description



Features:

JEDEC standard 3.3V power supply
LVTTL compatible with multiplexed address
Four banks / Pulse RAS RAS
MRS cycle with address key programs
- CAS Latency (2,3)
-  Burst Length (1,2,4,8 & full page)
-  Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Clock Frequency: 143MHz @ CL=3, 133Mhz @ CL=2
Burst Read Single-bit Write operation
DQM for masking
Auto & self refresh
64ms refresh period (8K cycle)
54 Pin TSOP (II)

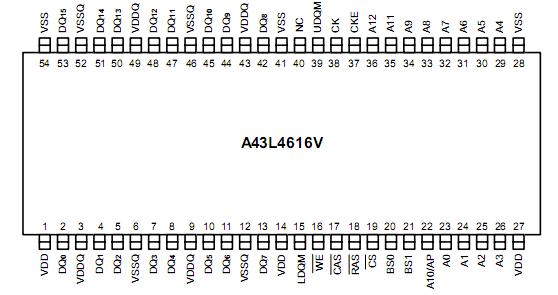

Pinout

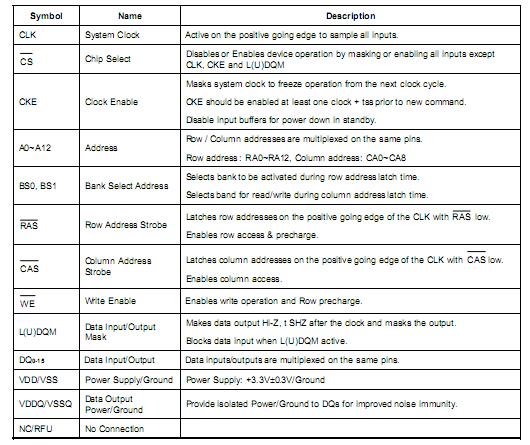

Connection Diagram Connection Diagram


Specifications

Voltage on any pin relative to VSS (Vin, Vout )  . . . . . . . . .
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . -1.0V to +4.6V
Voltage on VDD supply relative to VSS (VDD, VDDQ )
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-1.0V to +4.6V
Storage Temperature (TSTG) . . . . . . . . . -55°C to +150°C
Soldering Temperature X Time (TSLODER) . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260°C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . . .  1W
Short Circuit Current (Ios) . . . . . .  . . . . . . . . . . . . . .   50mA




Description

The A43L4616 is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 X 4,194,304 words by
16 bits, fabricated with AMIC's high performance CMOS technology. Synchronous design allows precise cycle
control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device A43L4616 to be useful for a variety of high bandwidth, high
performance memory system applications.
