A5358CA: IC SMOKE DETECTOR PHOTO 16-DIP

floor Price/Ceiling Price

Part Number:
A5358CA
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Allegro Microsystems Inc
Function: - Type: Smoke Detector
Input Type: Photoelectric Propagation Delay Time : 135 ns, 27 ns, 23 ns
Sensor Type: - Output Type: Voltage
Sensing Temperature: - Accuracy: -
Interface: - Current - Supply: 12µA
Topology: - Mounting Type: Through Hole
Output Alarm: - Package / Case: 16-DIP (0.300", 7.62mm)
Output Fan: - Supplier Device Package: 16-DIP
Packaging: Tube Voltage - Supply: -

Description

Series: -
Function: -
Sensor Type: -
Sensing Temperature: -
Accuracy: -
Topology: -
Output Alarm: -
Output Fan: -
Voltage - Supply: -
Operating Temperature: -
Mounting Type: Through Hole
Packaging: Tube
Output Type: Voltage
Type: Smoke Detector
Interface: -
Package / Case: 16-DIP (0.300", 7.62mm)
Input Type: Photoelectric
Manufacturer: Allegro Microsystems Inc
Current - Supply: 12µA
Supplier Device Package: 16-DIP


Features:

·Interconnect Up to 50 Detectors
·Piezoelectric Horn Driver
·All Internal Low-Battery Detection
·Power-ON Reset
·Internal Timer & Control for Reduced Sensitivity
·Built-In Circuits to Reduce False Triggering
·6 V to 12 V Operating Voltage Range
·ESD-Protection Circuitry on All Pins



Pinout

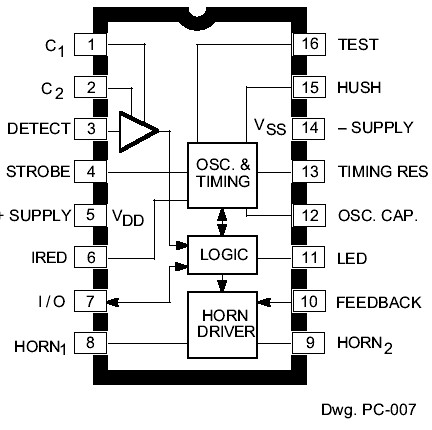

  Connection Diagram


Specifications

Supply Voltage Range,
VDD ...................................... -0.5 V to +15 V
Input Voltage Range,
VIN .............................. -0.3 V to VDD + 0.3 V
Input Current, IIN ............................... 10 mA
Operating Temperature Range,
TA ..................................... -25°C to +75°C
Storage Temperature Range,
TS ................................... -55°C to +125°C
CAUTION: CMOS devices have input static protection but are susceptible to damage if exposed to extremely high static electrical charges.



Description

The A5358CA is a low-current BiCMOS circuit providing all of the required features for a photoelectric type smoke detector. This device can be used in conjunction with an infrared photoelectric chamber to sense scattered light from smoke particles. Special features are incorporated in the design to facilitate calibration and testing of the finished detector. The device is designed to comply with Underwriters Laboratories Specification UL217 and British Standard BS 5446, Part 1.

A variable-gain photo amplifier can be directly interfaced to an infrared emitter/detector pair. The amplifier gain levels are determined by two external capacitors that are then internally selected depending on the operating mode. Low gain is selected during standby and timer modes. During a local alarm this low gain is increased (internally) by ~10% to reduce false triggering. High gain is used during the pushbutton test and during standby to periodically monitor the chamber sensitivity.

The internal oscillator and timing circuitry keeps standby power to a minimum by sensing for smoke every 10 seconds in a 10 s window. A special three-stage speedup sensing scheme is incorporated to minimize the time to an audible alarm and also to reduce false triggering. Also, two consecutive cycles of degraded chamber sensitivity are required for a warning signal to occur.

The A5358CA is supplied in a low-cost 16-pin dual in-line plastic package. It is rated for continuous operation over the temperature range of -25°C to +75°C. The Pb (lead) free version has 100% matte tin leadframe plating.




Parameters:

Technical/Catalog InformationA5358CA
VendorAllegro Microsystems Inc
CategoryIntegrated Circuits (ICs)
Package / Case16-DIP
PackagingTube
TypeSmoke Detector
InterfaceCMOS
Supply Voltage6 V ~ 12 V
Current - Supply12mA
Input TypeVoltage
Output TypeVoltage
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names A5358CA
A5358CA
