Features: ·To 3.3 MHz Data Input Rate
·CMOS, NMOS, TTL Compatible
·Internal Pull-Down Resistors
·Low-Power CMOS Logic & Latches
·High-Voltage Current-Sink Outputs

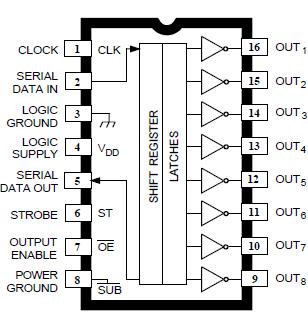

·Automotive CapablePinout
SpecificationsOutput Voltage, VOUT ................... 50 V
Logic Supply Voltage, VDD ............ 15 V
Input Voltage Range,
VIN ..................... -0.3 V to VDD + 0.3 V
Continuous Output Current,
IOUT ........................................ 500 mA
Package Power Dissipation, PD
Package Code 'A' .................. 2.1 W
Package Code 'LW' ............... 1.5 W
Operating Temperature Range,
TA ............................ -20°C to +85°C
Storage Temperature Range,
TS .......................... -55°C to +150°C
Caution: CMOS devices have input static protection but are susceptible to damage when exposed to extremely high static electrical charges.
DescriptionA merged combination of bipolar and MOS technology gives these devices an interface flexibility beyond the reach of standard logic buffers and power driver arrays.
The UCN5821A and UCN5821LW each have an eight-bit CMOS shift register and CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sinking Darlington output drivers. BiMOS II devices have much higher data-input rates than the original BiMOS circuits. With a 5 V logic supply, they will typically operate at better than 5 MHz. With a 12 V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS and NMOS logic levels. TTL circuits may require the use of appropriate pull-up resistors. By using the serial data output, the drivers can be cascaded for interface applications requiring additional drive lines.
The UCN5821A are furnished in a standard 16-pin plastic DIP; the UCN5821LW are in a 16-lead wide-body SOIC for surface- mount applications. The UCN5821A is also available for operation from -40°C to +85°C. To order, change the prefix from 'UCN' to 'UCQ'.
A5821 Data Sheet
