General Description
A6118SLW General Description
Consisting of eight npn Darlington output stages and the associated common-emitter input stages, these drivers are designed to interface between low-level digital logic and vacuum fluorescent
displays. Both devices are capable of driving the digits and/or segments of these displays and are designed to permit all outputs to be activated simultaneously. Pull-down resistors are incorporated into each output and no external components are required for most fluorescent display applications.
With any device, the output load is activated when the input is pulled towards the positive supply (active 'high'). The UDN6118A is furnished in a standard 18-pin plastic DIP; the A6118SLW is in a 20- lead wide-body SOIC. Both units operate over the temperature range of -20°C to +85°C. These devices are also available for operation over the temperature range of -40°C to +85°C by changing the part number to UDQ6118A or A6118ELW.
A6118SLW Maximum Ratings
Supply Voltage, VBB . . . . . . . . . . . . . . . 85 V
Input Voltage, VIN . . . . . . . . . . . . . . . . 20 V
Output Current, IOUT . . . . . . . . . . .. -40 mA
Allowable Package Power Dissipation,
PD . . . . . . . . . . . . . . . . . . . . . . . See Graph
Operating Temperature Range,
TA . . . . . . . . . . . . . . . . . . -20°C to +85°C
Storage Temperature Range,
TS . . . . . . . . . . . . . . . . . -55°C to +150°C
Input Voltage, VIN . . . . . . . . . . . . . . . . 20 V
Output Current, IOUT . . . . . . . . . . .. -40 mA
Allowable Package Power Dissipation,
PD . . . . . . . . . . . . . . . . . . . . . . . See Graph
Operating Temperature Range,
TA . . . . . . . . . . . . . . . . . . -20°C to +85°C
Storage Temperature Range,
TS . . . . . . . . . . . . . . . . . -55°C to +150°C
A6118SLW Features
·Digit or Segment Drivers
·Low Input Current
·Integral Output Pull-Down Resistors
·High Output Breakdown Voltage
·Single or Split Supply Operation
·Automotive Capable
·Low Input Current
·Integral Output Pull-Down Resistors
·High Output Breakdown Voltage
·Single or Split Supply Operation
·Automotive Capable

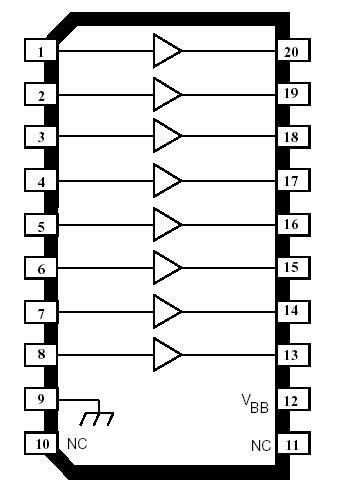

A6118SLW Connection Diagram
A6118SLW
PDF/DataSheet Download
