Part Number: A625308AV
Description: The A625308A is a low operating current 262,144-bit static random access memory organized as 32,768 wo...
- Table of contents:
A625308AV
-
Suppliers
DataSheet
General Description
A625308AV General Description
The A625308A is a low operating current 262,144-bit static random access memory organized as 32,768 words by 8 bits and operates on a voltage from 4.5V to 5.5V.
Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
Minimum standby power is drawn by this device when CE is at a high level, independent of the other input levels.
Data retention is guaranteed at a power supply voltage as low as 2.0V.
A625308AV Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . . -0.5V to+7.0V
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC +0.5V
Operating Temperature, Topr . . . . . . . 0°C to +70°C
Storage Temperature, Tstg . . . . . . -55°C to +125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . .260°C, 10 sec
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC +0.5V
Operating Temperature, Topr . . . . . . . 0°C to +70°C
Storage Temperature, Tstg . . . . . . -55°C to +125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . .260°C, 10 sec
A625308AV Features
` Power Supply Range: 4.5V to 5.5V
` Access times: 70 ns
` Current: Operating: 35mA (max.)
Standby: 8A (max.)
` Full static operation, no clock or refreshing required
` All inputs and outputs are directly TTL-compatible
` Common I/O using three-state output
` Data retention voltage: 2.0V (min.)
` Available in 28-pin, SOP and TSOP
` Access times: 70 ns
` Current: Operating: 35mA (max.)
Standby: 8A (max.)
` Full static operation, no clock or refreshing required
` All inputs and outputs are directly TTL-compatible
` Common I/O using three-state output
` Data retention voltage: 2.0V (min.)
` Available in 28-pin, SOP and TSOP

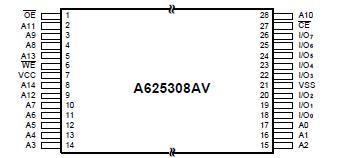

A625308AV Connection Diagram
A625308AV-70S
