Part Number: A627308
Description: The A627308 is a low operating current 1048,576-bit static random access memory organized as 131,072 w...
- Table of contents:
A627308
-
Suppliers
DataSheet
General Description
A627308 General Description
The A627308 is a low operating current 1048,576-bit static random access memory organized as 131,072 words by 8 bits and operates on a power supply voltage from 4.5V to 5.5V.
Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
Two chip enable inputs are provided for power down and a write enable and an output enable input are included for easy interfacing.
Data retention is guaranteed at a power supply voltage as low as 2V.
A627308 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . -0.5V to +7.0V
IN, IN/OUT Volt to GND . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . .. -25°C to + 85°C
Storage Temperature, Tstg . .. . . . -55°C to + 125°C
Power Dissipation, PT . . . . . . . . . . . . . . ... . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . .. 260°C, 10 sec
IN, IN/OUT Volt to GND . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . .. -25°C to + 85°C
Storage Temperature, Tstg . .. . . . -55°C to + 125°C
Power Dissipation, PT . . . . . . . . . . . . . . ... . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . .. 260°C, 10 sec
A627308 Features
·Power supply range: 4.5V to 5.5V
·Access times: 70 ns (max.)
·Current:
Operating: 45mA (max.)
Standby: 25mA (max.)
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL compatible
·Common I/O using three-state output
·Output enable and two chip enable inputs for easy application
·Data retention voltage: 2V (min.)
·Available in 32-pin SOP, TSOP, sTSOP (8X13.4mm) forward type packages
·Access times: 70 ns (max.)
·Current:
Operating: 45mA (max.)
Standby: 25mA (max.)
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL compatible
·Common I/O using three-state output
·Output enable and two chip enable inputs for easy application
·Data retention voltage: 2V (min.)
·Available in 32-pin SOP, TSOP, sTSOP (8X13.4mm) forward type packages

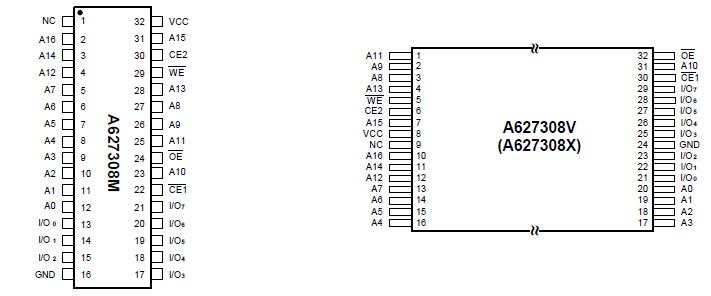

A627308 Connection Diagram
A627308
