General Description
A62L256 General Description
The A62L256 is a low operating current 262,144-bit static random access memory organized as 32,768 words by 8 bits and operates on a low power voltage: 2.7V to 3.6V.
Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
Minimum standby power is drawn by this device when CE is at a high level, independent of the other input levels.
Data retention is guaranteed at a power supply voltage as low as 2.0V.
A62L256 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . -0.5V to +3.6V
IN, IN/OUT Volt to GND . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . . . 0°C to +70°C
Storage Temperature, Tstg . . . . . . -55°C to +125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . 260°C, 10 se
IN, IN/OUT Volt to GND . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . . . 0°C to +70°C
Storage Temperature, Tstg . . . . . . -55°C to +125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . 260°C, 10 se
A62L256 Features
·External Operating Voltage: 2.7V to 3.6V
·Access times: 55ns (max.): for VCC = 3.0V to 3.6V
70ns (max.): for VCC = 2.7V to 3.6V
·Current: Operating (ICC1): -55 series 18mA (typ.)
-70 series 12mA (typ.)
Standby (ISB1): 0.05mA (typ.)
·Extended operating temperature range: -40ºC to +85º C for -LLU series
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL-compatible
·Common I/O using three-state output
·Data retention voltage: 2.0V (min.)
·Available in 28-pin DIP, SOP and TSOP (forward and reverse type) packages
·Access times: 55ns (max.): for VCC = 3.0V to 3.6V
70ns (max.): for VCC = 2.7V to 3.6V
·Current: Operating (ICC1): -55 series 18mA (typ.)
-70 series 12mA (typ.)
Standby (ISB1): 0.05mA (typ.)
·Extended operating temperature range: -40ºC to +85º C for -LLU series
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL-compatible
·Common I/O using three-state output
·Data retention voltage: 2.0V (min.)
·Available in 28-pin DIP, SOP and TSOP (forward and reverse type) packages
A62L256 Connection Diagram
A62L256
PDF/DataSheet Download
- Datasheet: A62L256
- File Size: 149634 KB
- Manufacturer: AMICC [AMIC Technology]
- Click here to Download
- ·A623308
- AMICC [AMIC Technology]
- 8K X 8 BIT CMOS SRAM
- 134007 KB
- ·A623308A-70SIF
- AMIC Technology
- 8K X 8 BIT CMOS SRAM
- 138199 KB
- ·A623308A-70SUF
- AMIC Technology
- 8K X 8 BIT CMOS SRAM
- 138199 KB
- ·A623308AM-70SF
- AMIC Technology
- 8K X 8 BIT CMOS SRAM
- 138199 KB
- ·A623308AM-70SIF
- AMIC Technology
- 8K X 8 BIT CMOS SRAM
- 138199 KB
- ·A623308AV-70SF
- AMIC Technology
- 8K X 8 BIT CMOS SRAM
- 138199 KB
- ·A623308AV-70SUF
- AMIC Technology
- 8K X 8 BIT CMOS SRAM
- 138199 KB
- ·A623308M-70S
- AMICC [AMIC Technology]
- 8K X 8 BIT CMOS SRAM
- 134007 KB
A62L256 Relative Products
A6285EETTR-T
IC LED DVR 16CH CC LATCH 32QFN
-
A6285EET-T
IC LED DRIVER 16CH 80MA 32-QFN
A6285
The A6285 is designed for LED display applications. This BiCMOS device includes an On/Off shift register, a Dot Correction (DC) shift register, accompanying data latches, and 16 MOS constant-current sink drivers with active pull-ups that can be enabled or di...
A6282ELWTR-T
IC LED DRIVER 16CH 50MA 24-SOIC

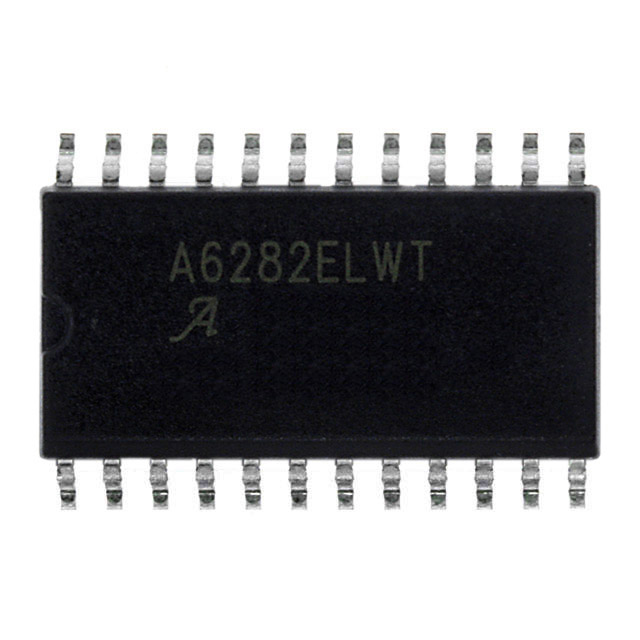

A6282ELW-T
