A62S8308

Features: `Power supply range: 2.7V to 3.6V`Access times: 55ns (max.): for VCC = 3.0V to 3.6V 70ns (max.): for VCC = 2.7V to 3.6V`Current: A62S8308-S series: Operating: 40mA (max.) Standby: 10mA (max.) A62S8308-SI series: Operating: 40mA (max.) Standby: 15mA (max.)`Extended operating temperature r...

product image

A62S8308 Picture
See larger image
SeekIC No. : 004260473 Detail

A62S8308: Features: `Power supply range: 2.7V to 3.6V`Access times: 55ns (max.): for VCC = 3.0V to 3.6V 70ns (max.): for VCC = 2.7V to 3.6V`Current: A62S8308-S series: Operating: 40mA (max.) Standby: 10mA (ma...

A62S8308 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
A62S8308
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Power supply range: 2.7V to 3.6V
`Access times: 55ns (max.): for VCC = 3.0V to 3.6V
  70ns (max.): for VCC = 2.7V to 3.6V
`Current:
  A62S8308-S series: Operating: 40mA (max.)
  Standby: 10mA (max.)
  A62S8308-SI series: Operating: 40mA (max.)
  Standby: 15mA (max.)
`Extended operating temperature range:-25°C to 85°C for SI series
`Full static operation, no clock or refreshing required
`All inputs and outputs are directly TTL compatible
`Common I/O using three-state output
`Output enable and two chip enable inputs for easy application
`Data retention voltage: 2V (min.)
`Available in 32-pin SOP, TSOP, sTSOP (8X 13.4mm) forward type and 36-ball Mini BGA (6X8) packages


Pinout

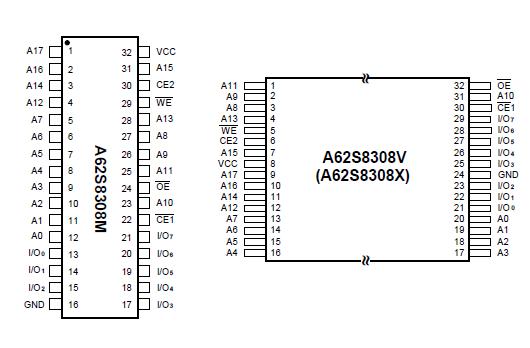

Connection Diagram


Specifications

VCC to GND . . . . . . . . . . . . . . . . . . . . . -0.5V to + 4.6V
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . .. -25°C to + 85°C
Storage Temperature, Tstg . .. . . . . -55°C to + 125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . 260°C, 10 sec


Description

The A62S8308 is a low operating current 2,097,152-bit static random access memory organized as 262,144 words by 8 bits and operates on a low power supply voltage from 2.7V to 3.6V.

Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.

Two chip enable inputs are provided for power down and a device enable and an output enable input are included for easy interfacing.

Data retention is guaranteed at a power supply voltage as low as 2V.
