Part Number: A62S9308
Description: The A62S9308 is a low operating current 4,194,304-bit static random access memory organized as 524,288...
- Table of contents:
A62S9308
-
Suppliers
DataSheet
General Description
A62S9308 General Description
The A62S9308 is a low operating current 4,194,304-bit static random access memory organized as 524,288 words by 8 bits and operates on a low power supply voltage from 2.7V to 3.6V.
Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
Two chip enable inputs for Mini BGA package are provided for power down and a device enable and an output enable input are included for easy interfacing.
Data retention is guaranteed at a power supply voltage as low as 2V.
A62S9308 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . -0.5V to + 4.6V
IN, IN/OUT Volt to GND . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . -25°C to + 85°C
Storage Temperature, Tstg . .. . . . -55°C to + 125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . .. . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . 260°C, 10 sec
IN, IN/OUT Volt to GND . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . -25°C to + 85°C
Storage Temperature, Tstg . .. . . . -55°C to + 125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . .. . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . 260°C, 10 sec
A62S9308 Features
·Power supply range: 2.7V to 3.6V
·Access times:70 ns (max.)
·Current:
A62S9308-S series: Operating: 40mA (max.)
Standby: 10mA (max.)
A62S9308-SI series: Operating: 40mA (max.)
Standby: 15mA (max.)
·Extended operating temperature range: -25°C to 85°C for -SI series
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL compatible
·Common I/O using three-state output
·Output enable and two chip enable inputs for easy application
·Data retention voltage: 2V (min.)
·Available in 32-pin SOP, TSOP, sTSOP (8X 13.4mm) forward type and 36-ball Mini BGA (6X8) packages
·Access times:70 ns (max.)
·Current:
A62S9308-S series: Operating: 40mA (max.)
Standby: 10mA (max.)
A62S9308-SI series: Operating: 40mA (max.)
Standby: 15mA (max.)
·Extended operating temperature range: -25°C to 85°C for -SI series
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL compatible
·Common I/O using three-state output
·Output enable and two chip enable inputs for easy application
·Data retention voltage: 2V (min.)
·Available in 32-pin SOP, TSOP, sTSOP (8X 13.4mm) forward type and 36-ball Mini BGA (6X8) packages

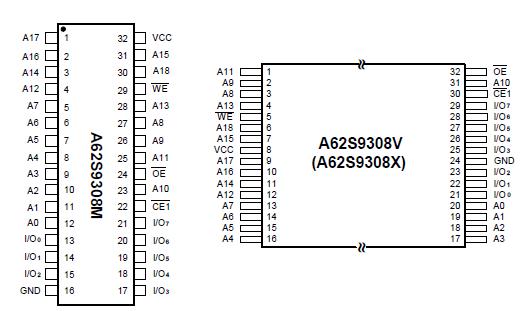

A62S9308 Connection Diagram
A62S9308
