Part Number: A78M00









Description: This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of app...


Urgent Purchase

A78M00 General Description


This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.

A78M00 Maximum Ratings

  MIN MAX UNIT
VI Input voltage 35 V
TJ Operating virtual junction temperature 150 °C
Tstg Storage temperature range 65 150 °C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.





A78M00 Features

· 3-Terminal Regulators
· High Power-Dissipation Capability
· Output Current up to 500 mA
· Internal Short-Circuit Current Limiting
· No External Components
· Output Transistor Safe-Area Compensation
· Internal Thermal-Overload Protection

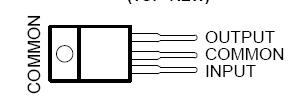

A78M00 Connection Diagram

A78M00 Connection Diagram

A78M00 datasheet
