General Description
A8032 General Description
The AMIC A8032 is a high-performance 8-bit microcontroller. It is compatible with the industry standard 80C52 microcontroller series.
The A8032 contains a 256B RAM, four 8-bit bidirectional parallel ports, three 16-bit timer/counters, a serial port and six interrupt sources with two priority levels.
The A8032 has supports 64KB external data memory.
A8032 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . 0.3V to +7.0V
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . .-25°C to + 85°C
Storage Temperature, Tstg . . . . . . -55°C to + 125°C
Power Dissipation1*, Pr . . . . . . . . . . . . . . . . . . . . . 1W
Soldering Temperature & Time . . . . . . . . 260°C, 10sec
1* : Operating frequency is 40MHZ
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to this device.These are stress ratings only. Functional operation of this device at these or any other conditions above those indicated in the operational sections of this specification is not implied or intended. Exposure to the absolute maximum rating conditions for extended periods may affect device reliability.
A8032 Features
· 8-bit CMOS microcontroller
· Fully static design with power saving idle mode and power down mode
· Low standby current at full supply voltage
· Versions for 12/24/40MHZ operating frequency
· On chip 256B RAM
· Four 8-bit bidirectional ports
· Three 16-bit Timers/Counters (Timer 2 with up/down counter feature)
· One full duplex serial port
· Boolean processor
· Six interrupt sources, two priority levels
· Available in 40-pin P-DIP and 44-pin PLCC packages
· Fully static design with power saving idle mode and power down mode
· Low standby current at full supply voltage
· Versions for 12/24/40MHZ operating frequency
· On chip 256B RAM
· Four 8-bit bidirectional ports
· Three 16-bit Timers/Counters (Timer 2 with up/down counter feature)
· One full duplex serial port
· Boolean processor
· Six interrupt sources, two priority levels
· Available in 40-pin P-DIP and 44-pin PLCC packages

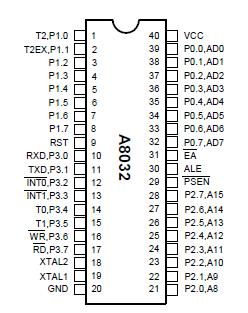

A8032 Connection Diagram
A8032
