Part Number: A8351601L
Description: The AMIC A8351601 is a high-performance 8-bit microcontroller. It is compatible with the industry stan...
- Table of contents:
A8351601L
-
Suppliers
DataSheet
General Description
A8351601L General Description
The AMIC A8351601 is a high-performance 8-bit microcontroller. It is compatible with the industry standard 80C52 microcontroller series.
The A8351601 contains a on chip 256 byte RAM, 64K byte OTP ROM, 8K byte external data SRAM, four 8-bit bidirectional parallel ports, three 16-bit timer/counters, a serial port and six interrupt sources with two priority levels.
The A8351601 has supports 64KB external data memory.
A8351601L Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . 0.3V to +7.0V
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . . -25°C to + 85°C
Storage Temperature, Tstg . . . . . . . -55°C to + 125°C
Power Dissipation1*, Pr . . . . . . . . . . . . . . . . . . . . . . 1W
Soldering Temperature & Time . . . . . . . . . 260°C, 10sec
1* : Operating frequency is 40MHz(5V ± 10%)
2* : Operating frequency is 16MHz(3V ± 10%)
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . . -25°C to + 85°C
Storage Temperature, Tstg . . . . . . . -55°C to + 125°C
Power Dissipation1*, Pr . . . . . . . . . . . . . . . . . . . . . . 1W
Soldering Temperature & Time . . . . . . . . . 260°C, 10sec
1* : Operating frequency is 40MHz(5V ± 10%)
2* : Operating frequency is 16MHz(3V ± 10%)
A8351601L Features
·80C32 CPU core
·Build in 64K byte OTP ROM
·Build in 8K byte external SRAM (0000H - 1FFFH), can be disable by SFR
·Fully pin compatible with standard 8051 family interface
·Instruction set compatible with 8051 family
·Option frequency 4.5V-5.5V:0-40MHz, 2.7V-3.3V:0-16MHz
·Power saving operation:Idle is compatible with 8051 family Power down can be wake up by external interrupt
·Port0~Port3 with internal pull-up
·Four channel PWM output for PLCC & QFP package
·Capture function with T2EX reversed mode
·Operation temperature: -10°C~70°C
·ESD > 3KV
·Double frequency selected by SFR
·Build in 64K byte OTP ROM
·Build in 8K byte external SRAM (0000H - 1FFFH), can be disable by SFR
·Fully pin compatible with standard 8051 family interface
·Instruction set compatible with 8051 family
·Option frequency 4.5V-5.5V:0-40MHz, 2.7V-3.3V:0-16MHz
·Power saving operation:Idle is compatible with 8051 family Power down can be wake up by external interrupt
·Port0~Port3 with internal pull-up
·Four channel PWM output for PLCC & QFP package
·Capture function with T2EX reversed mode
·Operation temperature: -10°C~70°C
·ESD > 3KV
·Double frequency selected by SFR

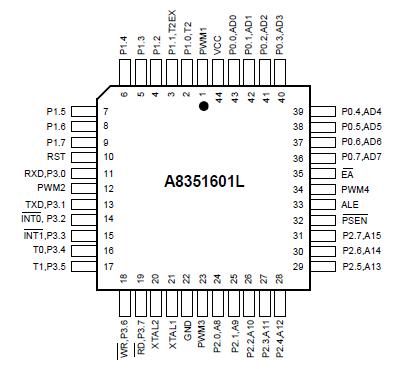

A8351601L Connection Diagram
A8351601L-40
