AA028P2-A2

Features: Surface Mount Package13 dB Gain+16 dBm Output PowerSingle Voltage Operation100% RF and DC TestingPinoutSpecificationsOperating Temperature (T C)............-55°C to +90°C Storage Temperature (TST )............-65°C to +150°CBias Voltage (V D1)................................................

product image

AA028P2-A2 Picture
See larger image
SeekIC No. : 004260853 Detail

AA028P2-A2: Features: Surface Mount Package13 dB Gain+16 dBm Output PowerSingle Voltage Operation100% RF and DC TestingPinoutSpecificationsOperating Temperature (T C)............-55°C to +90°C Storage Temperatu...

AA028P2-A2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AA028P2-A2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Surface Mount Package
13 dB Gain
+16 dBm Output Power
Single Voltage Operation
100% RF and DC Testing

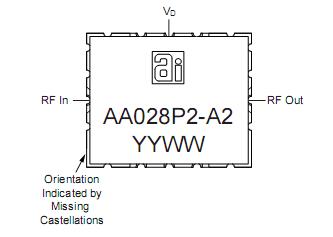

Pinout

Connection Diagram


Specifications

Operating Temperature (T C)............-55°C to +90°C
Storage Temperature (TST )............-65°C to +150°C
Bias Voltage (V D1)................................................7 VDC
Power In (PIN ).................................................13 dBm




Description

    The AA028P2-A2 is a broadband millimeterwave driver amplifier in a rugged surface mount package which is compatible with high volume solder installation.The amplifier is designed for use in millimeterwave communication and sensor systems as a gain stage in the receiver, transmitter, or LO chain when high gain and linearity are required.The robust ceramic surface mount package provides excellent electrical performance and a high degree of environmental protection for long-term reliability.

   A single supply voltage simplifies bias requirements.All amplifiers are screened at the operating frequencies prior to shipment for guaranteed performance.Amplifier is targeted for high volume millimeterwave applications such as point-to-point and point-to-multipoint wireless communications systems.
