Part Number: AA100-59
MFG: ALPHA
D/C: O9+
Description: The AA100-59 is a 3 bit, single positive control, 4 dB step GaAs ICFET digital attenuator in a low cos...
- Table of contents:
AA100-59
-
Suppliers
DataSheet
General Description
AA100-59 General Description
The AA100-59 is a 3 bit, single positive control, 4 dB step GaAs ICFET digital attenuator in a low cost MSOP-8 plastic package.For positive operation external DC blocking capacitors are required on all RF ports.The AA100-59 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular, radio, wireless data, wireless local loop and other gain leve control circuits.
AA100-59 Maximum Ratings
RF Input Power........... ..1W > 500 MHz 0/8 V0.5 W @ 50 MHz 0/8 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
AA100-59 Features
Attenuation in 4 dB Steps to 28 dB with High Accuracy
Single Positive Control Voltage for Each Bit
+3 V to +5 V Operation
Small Low Cost MSOP-8 Plastic Package
Single Positive Control Voltage for Each Bit
+3 V to +5 V Operation
Small Low Cost MSOP-8 Plastic Package

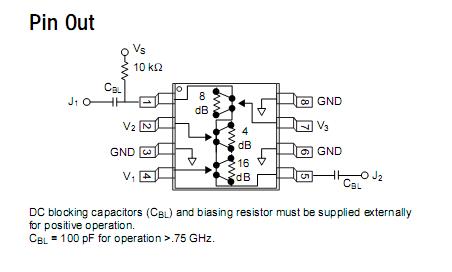

AA100-59 Connection Diagram
AA100-59
PDF/DataSheet Download
- Datasheet: AA100-59
- File Size: 38994 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
