Purchase AA210-25, In-stock AA210-25 From SeekIC.
MFG:ALPHA
Part Number: AA210-25
MFG: ALPHA
Description: The AD210-25 is an IC FET digital attenuator consisting of four monolithic attenuators with LSB of 1 d...
- Table of contents:
AA210-25
-
Suppliers
DataSheet
General Description
AA210-25 General Description
The AD210-25 is an IC FET digital attenuator consisting of four monolithic attenuators with LSB of 1 dB and a total attenuation of 15 dB with all attenuators connected. Attenuator bits are switched with -5 and 0 V. The AD210-25 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular, radio, wireless data, wireless local loop and other gain/level control circuits.
AA210-25 Maximum Ratings
RF Input Power...........1.5W > 500 MHz 0/-8 V0.5 W @ 50 MHz 0/-8 V
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
Supply Voltage.............................................................................+8 V
Control Voltage.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature.............................................-65°C to +150°C
AA210-25 Features
Attenuation in 1 dB Steps to 15 dB with High Accuracy
Low Intermodulation Products
Low Cost SOIC-16 Plastic Package
Low DC Power Consumption
Low Intermodulation Products
Low Cost SOIC-16 Plastic Package
Low DC Power Consumption

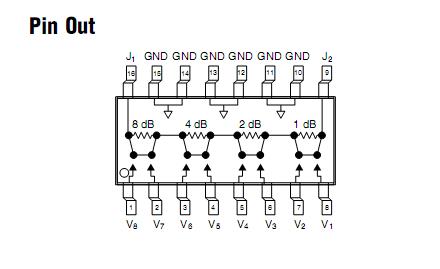

AA210-25 Connection Diagram
AA210-25
PDF/DataSheet Download
- Datasheet: AA210-25
- File Size: 39643 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
